Kennametal

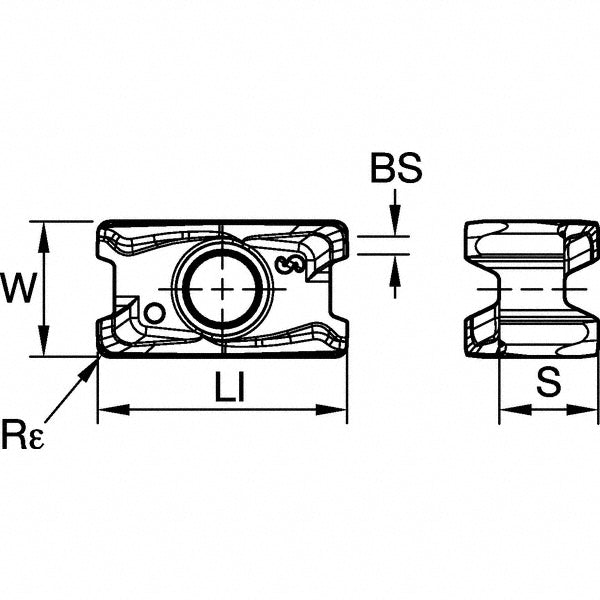

LNGU110408SRGEM Solid Carbide Insert, Grade KCK15, TiN - Kennametal 6131602
MFR# 6131602ISO/ANSI# LNGU110408SRGEMCat# LNGU110408SRGEMSeries LNGU
$29.87List $36.46
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeRectangle
GradeKCK15
MaterialSolid Carbide
CoatingTiN
Description
The Kennametal 6131602 is a LNGU110408SRGEM solid carbide indexable insert, grade KCK15, TiN coated. Suited for cast iron.
Specifications
Ansi codeLNGU432SRGEM
Chip breakerGEM
Coating finishTiN
Coating processMTCVD
Corner radius in1/32
Cutter series compatibilityMill 4-11
Cutting edge styleChamfered; Honed
Hole diameter0.1339
Included angle degree90
Inscribed circle0.2598
Inscribed circle range0.2500 to 0.3000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeRectangle
Insert size4
Insert size code432
Insert styleLNGU
Iso codeLNGU110408SRGEM
Length in31/64
Length range0.4500 to 0.5000
Manufacturers catalog numberLNGU110408SRGEM
Manufacturer gradeKCK15
Material applicationCast Iron
Material gradeC1
Multi use toolYes
Number of cutting edges4
Primary workpiece materialCast Iron
RakePositive
Relief angle0.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in3/16
Thickness range0.1850 to 0.2000
Width0.2598
