LNGU15T608SRGE Solid Carbide Insert, Grade KCSM40, TiAlN - Kennametal 6165400
MFR# 6165400ISO/ANSI# LNGU15T608SRGECat# LNGU15T608SRGESeries LNGU
$41.08List $50.14
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeRectangle
GradeKCSM40
MaterialSolid Carbide
CoatingTiAlN
Description
The Kennametal 6165400 is a LNGU15T608SRGE solid carbide indexable insert, grade KCSM40, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.

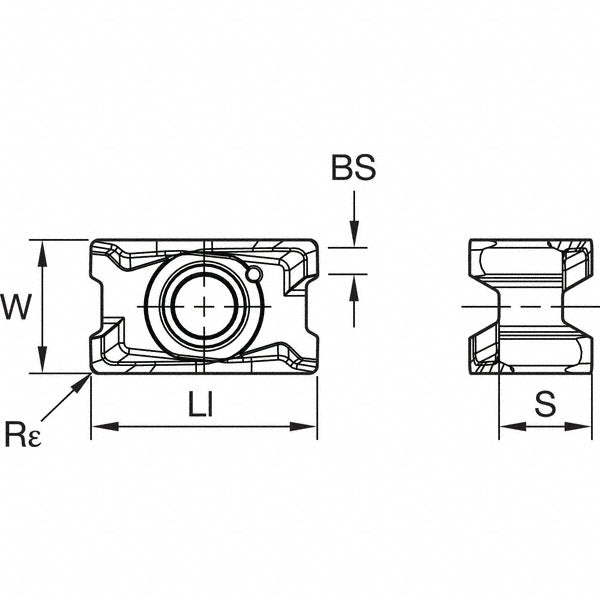

Specifications
Ansi codeLNGU542SRGE
Chip breakerGE
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutter series compatibilityMill 4-15
Cutting edge styleChamfered; Honed
Hole diameter0.1772
Included angle degree90
Inscribed circle0.3937
Inscribed circle range0.3500 to 0.4000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeRectangle
Insert size5
Insert size code542
Insert styleLNGU
Iso codeLNGU15T608SRGE
Length0.6700
Length range0.6500 to 0.7000
Manufacturers catalog numberLNGU15T608SRGE
Manufacturer gradeKCSM40
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Relief angle0.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.2740
Thickness range0.2500 to 0.3500
Width0.3937
