Kennametal

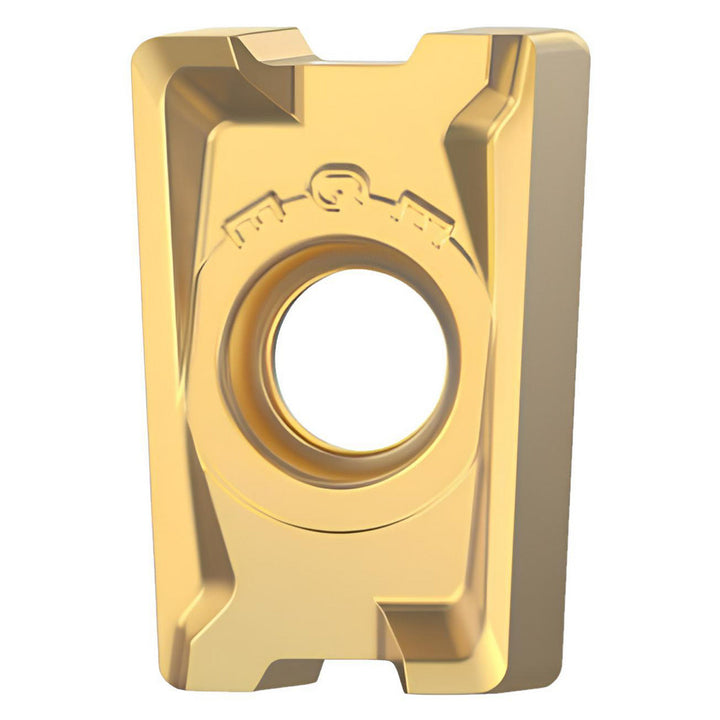

LNGU15T612ERGE Solid Carbide Insert, Grade KCSM40, TiAlN - Kennametal 6165423
MFR# 6165423ISO/ANSI# LNGU15T612ERGECat# LNGU15T612ERGESeries LNGU
$41.08List $50.14
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeRectangle
GradeKCSM40
MaterialSolid Carbide
CoatingTiAlN
Description
The Kennametal 6165423 is a LNGU15T612ERGE solid carbide indexable insert, grade KCSM40, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Ansi codeLNGU543ERGE
Chip breakerGE
Coating finishTiAlN
Coating processPVD
Corner radius in3/64
Cutter series compatibilityMill 4-15
Cutting edge styleHoned
Hole diameter0.1772
Included angle degree90
Inscribed circle0.3940
Inscribed circle range0.3500 to 0.4000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeRectangle
Insert size5
Insert size code543
Insert styleLNGU
Iso codeLNGU15T612ERGE
Length0.6700
Length range0.6500 to 0.7000
Manufacturers catalog numberLNGU15T612ERGE
Manufacturer gradeKCSM40
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Maximum depth of cut0.2830
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Relief angle0.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.2740
Thickness range0.2500 to 0.3500
Width0.3940
