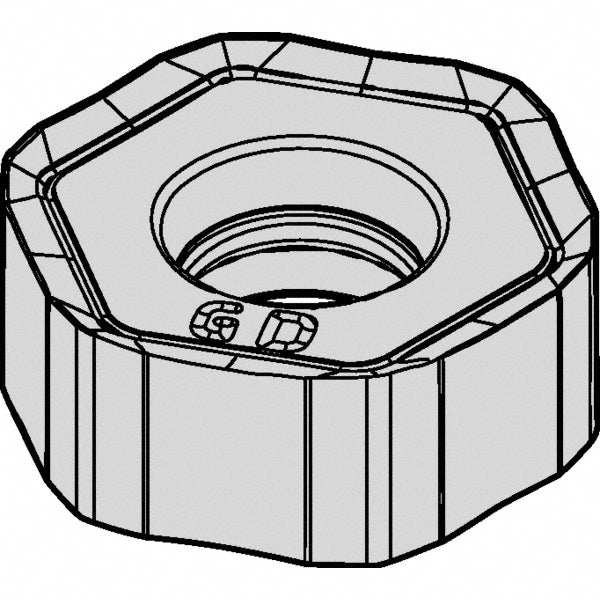

HNPJ0604ANSNGD Solid Carbide Insert, Grade KCSM40, TiAlN - Kennametal 6165759

Kennametal

HNPJ0604ANSNGD Solid Carbide Insert, Grade KCSM40, TiAlN - Kennametal 6165759

MFR# 6165759ISO/ANSI# HNPJ0604ANSNGDCat# HNPJ0604ANSNGDSeries HNPJ

$34.12List $40.92 Save 16%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Sold in multiples of 5 — minimum order 5

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeHexagon
GradeKCSM40
MaterialSolid Carbide
CoatingTiAlN

Description

The Kennametal 6165759 is a HNPJ0604ANSNGD solid carbide indexable insert, grade KCSM40, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Ansi codeHNPJ43ANSNGD
Chip breakerGD
Coating finishTiAlN
Coating processPVD
Corner radius0.0394
Cutter series compatibilityDodeka
Cutting edge styleChamfered; Honed
Included angle degree120
Inscribed circle0.4724
Inscribed circle range0.4000 to 0.5000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeHexagon
Insert size4
Insert size code43
Insert styleHNPJ
Iso codeHNPJ0604ANSNGD
Length in1/4
Length range0.4500 to 0.5000
Manufacturers catalog numberHNPJ0604ANSNGD
Manufacturer gradeKCSM40
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Maximum depth of cut0.2533
Multi use toolYes
Number of cutting edges12
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakeNegative
Relief angle0.00
Single or double sided insertDouble
StandardsANSI; ISO
Thickness in11/64
Thickness range0.1750 to 0.1850
Width0.4724
