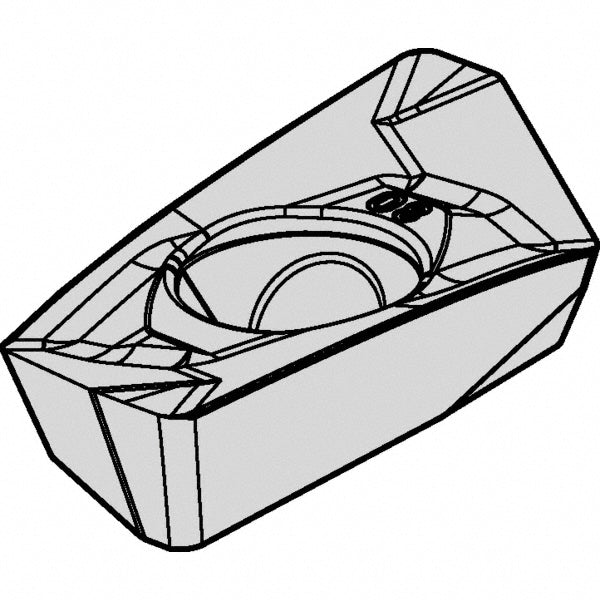

EDPT180508PDSRGD Solid Carbide Insert, Grade KCSM40, TiAlN - Kennametal 6172348
MFR# 6172348ISO/ANSI# EDPT180508PDSRGDCat# EDPT180508PDSRGDSeries EDPT
$28.35List $34.61
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeParallelogram
GradeKCSM40
MaterialSolid Carbide
CoatingTiAlN
Description
The Kennametal 6172348 is a EDPT180508PDSRGD solid carbide indexable insert, grade KCSM40, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Ansi codeEP1808S
Chip breakerGD
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutter series compatibilityMill 1-18
Cutting edge styleChamfered; Honed
Included angle degree70
Inscribed circle0.4290
Inscribed circle range0.4000 to 0.5000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size18
Insert size code1808
Insert styleEDPT
Iso codeEDPT180508PDSRGD
Length in55/64
Length range0.7000 to 0.9000
Manufacturers catalog numberEDPT180508PDSRGD
Manufacturer gradeKCSM40
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Rake angle15
Relief angle15.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.2165
Thickness range0.2000 to 0.2200
Width0.4290
