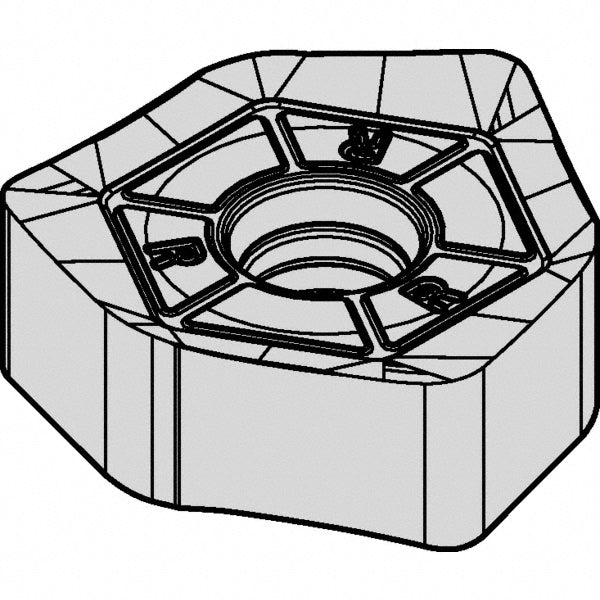

XNGJ0905ANSNGD3W Solid Carbide Insert, Grade KCSM40, TiAlN - Kennametal 6178107
MFR# 6178107ISO/ANSI# XNGJ0905ANSNGD3WCat# XNGJ0905ANSNGD3WSeries XNGJ
$57.78List $69.30
Save 16%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Sold in multiples of 10 — minimum order 10
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC5/8
ShapeTrigon
GradeKCSM40
MaterialSolid Carbide
CoatingTiAlN
Description
The Kennametal 6178107 is a XNGJ0905ANSNGD3W solid carbide indexable insert, grade KCSM40, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Ansi codeXNGJ535ANSNGD3W
Chip breakerGD
Coating finishTiAlN
Coating processPVD
Corner radius in1/16
Cutter series compatibilityDodeka
Cutting edge styleWiper
Included angle degree80
Inscribed circle in5/8
Inscribed circle range0.6000 to 0.7000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeTrigon
Insert size5
Insert size code535
Insert styleXNGJ
Iso codeXNGJ0905ANSNGD3W
Length in5/8
Length range0.6000 to 0.6500
Manufacturers catalog numberXNGJ0905ANSNGD3W
Manufacturer gradeKCSM40
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Maximum depth of cut0.3260
Multi use toolYes
Number of cutting edges6
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Relief angle0.00
Single or double sided insertDouble
StandardsANSI; ISO
Thickness in7/32
Thickness range0.2000 to 0.2200
Width in5/8
