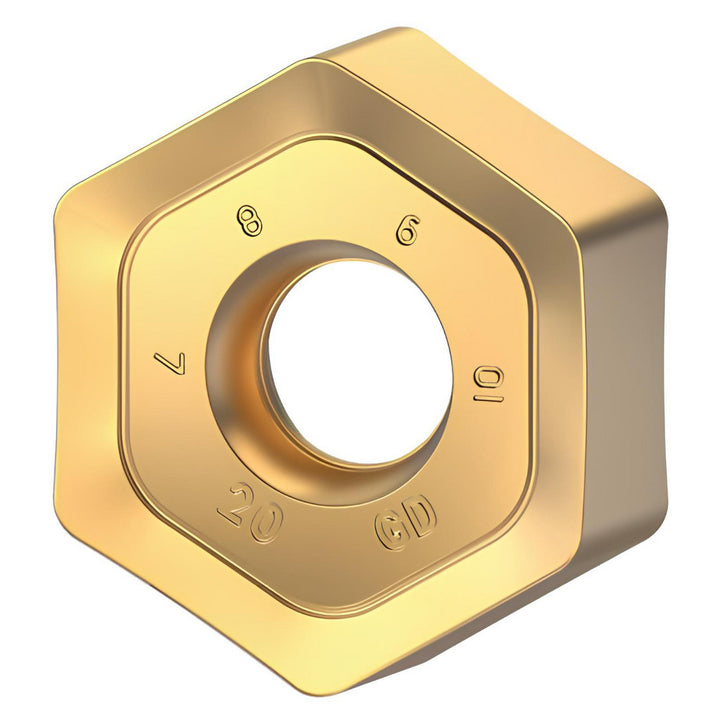

HNPJ1307ANSNHD Solid Carbide Insert, Grade KCSM40, TiAlN - Kennametal 6178110
MFR# 6178110ISO/ANSI# HNPJ1307ANSNHDCat# HNPJ1307ANSNHDSeries HNPJ
$46.30List $56.51
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC7/8
ShapeHexagon
GradeKCSM40
MaterialSolid Carbide
CoatingTiAlN
Description
The Kennametal 6178110 is a HNPJ1307ANSNHD solid carbide indexable insert, grade KCSM40, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Ansi codeHNPJ75ANSNHD
Chip breakerHD
Coating finishTiAlN
Coating processPVD
Corner radius in3/64
Cutter series compatibilityDodeka
Cutting edge styleChamfered; Honed
Included angle degree120
Inscribed circle in7/8
Inscribed circle range0.7000 to 1.0000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeHexagon
Insert size7
Insert size code75
Insert styleHNPJ
Iso codeHNPJ1307ANSNHD
Length in7/8
Length range0.7000 to 0.9000
Manufacturers catalog numberHNPJ1307ANSNHD
Manufacturer gradeKCSM40
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Maximum depth of cut0.3260
Multi use toolYes
Number of cutting edges12
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakeNegative
Relief angle0.00
Single or double sided insertDouble
StandardsANSI; ISO
Thickness in9/32
Thickness range0.2500 to 0.3500
Width in7/8
