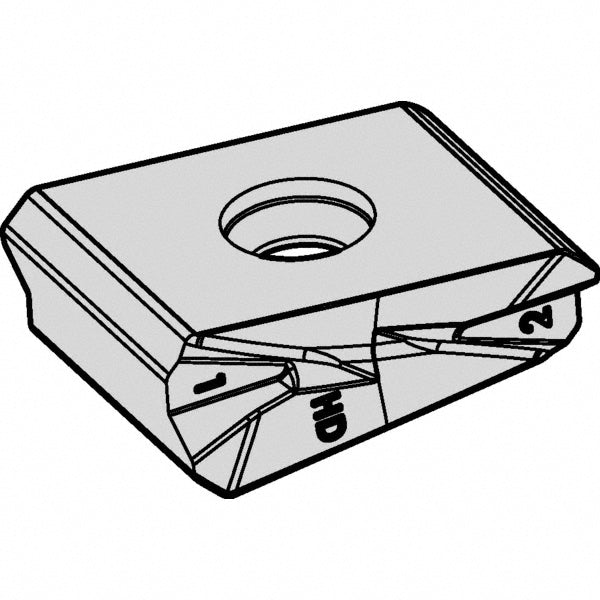

LNPU2410ANSRHD2 Solid Carbide Insert, Grade KCSM40, TiAlN - Kennametal 6178121
MFR# 6178121ISO/ANSI# LNPU2410ANSRHD2Cat# LNPU2410ANSRHD2Series LNPU
$106.96List $128.29
Save 16%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Sold in multiples of 5 — minimum order 5
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeRectangle
GradeKCSM40
MaterialSolid Carbide
CoatingTiAlN
Description
The Kennametal 6178121 is a LNPU2410ANSRHD2 solid carbide indexable insert, grade KCSM40, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Ansi codeLNPU863ANSRHD2
Chip breakerHD2
Coating finishTiAlN
Coating processPVD
Corner radius in3/64
Cutter series compatibilityMEGA45
Cutting edge styleChamfered; Honed
Included angle degree90
Inscribed circle0.9860
Inscribed circle range0.7000 to 1.0000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeRectangle
Insert size8
Insert size code863
Insert styleLNPU
Iso codeLNPU2410ANSRHD2
Length1.1420
Length range1.0000+
Manufacturers catalog numberLNPU2410ANSRHD2
Manufacturer gradeKCSM40
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Relief angle0.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.3940
Thickness range0.3500 to 0.5000
Width0.9860
