Kennametal

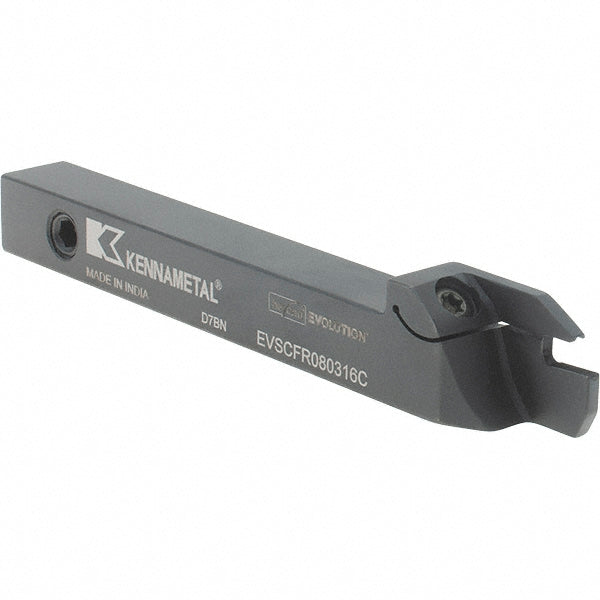

Indexable Grooving - Kennametal 6180128
MFR# 6180128Series Beyond Evolution
$187.85List $229.30
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Kennametal 6180128 indexable grooving. Series Beyond Evolution.
Specifications
Coolant throughYes
Hand of holderRight Hand
Head height (mm)17.45
Head length (mm)27.50
Insert compatibilityEG0300M03P02
Insert holding methodClamp
Internal or externalExternal
Maximum depth of cut (mm)16.00
Maximum groove width (mm)3.00
Minimum groove width (mm)3.00
Overall length4.5000
Shank height in1/2
Shank length (mm)86.80
Shank width diameter in1/2
Toolholder styleEVSC
