Kennametal

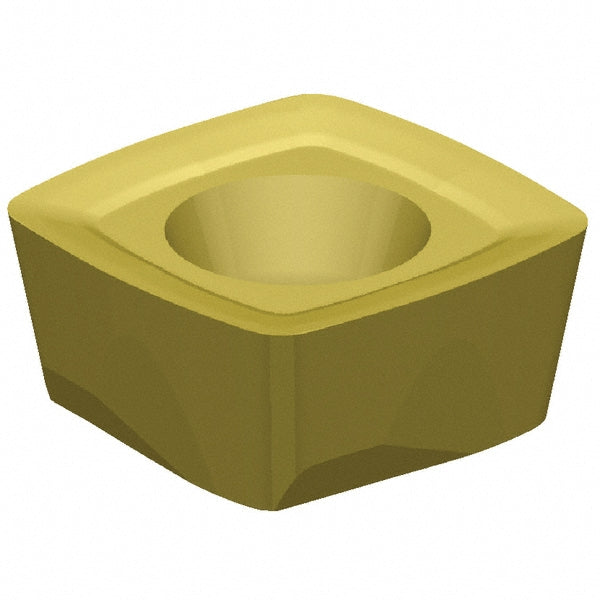

XPLT060308ERD41 Solid Carbide Insert, Grade KCSM40, TiAlN - Kennametal 6185769
MFR# 6185769ISO/ANSI# XPLT060308ERD41Cat# XPLT060308ERD41Series XPPT
$24.36List $29.22
Save 16%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Sold in multiples of 5 — minimum order 5
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeSquare
GradeKCSM40
MaterialSolid Carbide
CoatingTiAlN
Description
The Kennametal 6185769 is a XPLT060308ERD41 solid carbide indexable insert, grade KCSM40, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Ansi codeXPPT060308ERD41
Chip breakerD41
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutter series compatibility7792VXP06
Cutting edge styleHoned
Included angle degree90
Inscribed circle0.2760
Inscribed circle range0.2500 to 0.3000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size06
Insert size code060308
Insert styleXPPT
Iso codeXPLT060308ERD41
Length0.2760
Length range0.0000 to 0.3200
Manufacturers catalog numberXPLT060308ERD41
Manufacturer gradeKCSM40
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Relief angle11.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in1/8
Thickness range0.1250 to 0.1500
Width0.2760
