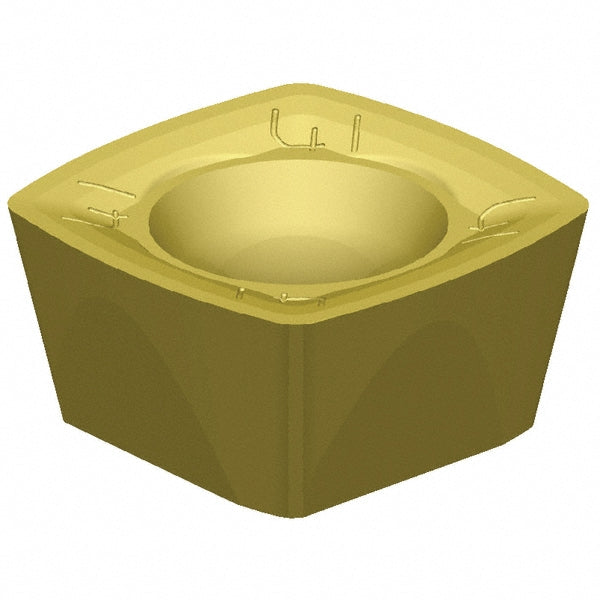

XDPT090408ERD41 Solid Carbide Insert, Grade KCSM40, TiAlN - Kennametal 6185921
MFR# 6185921ISO/ANSI# XDPT090408ERD41Cat# XDPT090408ERD41Series XDPT
$24.59List $30.01
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeSquare
GradeKCSM40
MaterialSolid Carbide
CoatingTiAlN
Description
The Kennametal 6185921 is a XDPT090408ERD41 solid carbide indexable insert, grade KCSM40, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Ansi codeXDPT090408ERD41
Chip breakerD41
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutter series compatibility7792VXD09
Cutting edge styleHoned
Included angle degree90
Inscribed circle in3/8
Inscribed circle range0.3500 to 0.4000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size09
Insert size code090408
Insert styleXDPT
Iso codeXDPT090408ERD41
Length in3/8
Length range0.3200 to 0.4000
Manufacturers catalog numberXDPT090408ERD41
Manufacturer gradeKCSM40
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Relief angle15.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in3/16
Thickness range0.1850 to 0.2000
Width in3/8
