Kennametal

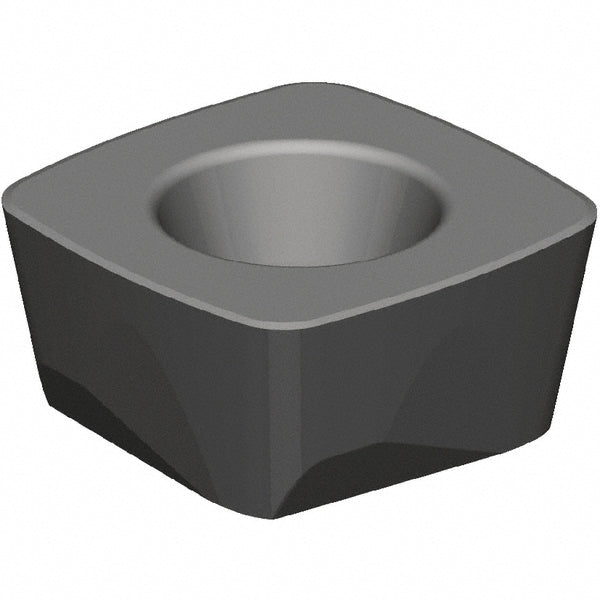

XPLT060310SRD Solid Carbide Insert, Grade KCPM40, TiAlN - Kennametal 6187511
MFR# 6187511ISO/ANSI# XPLT060310SRDCat# XPLT060310SRDSeries XPPW
$20.68List $25.24
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeSquare
GradeKCPM40
MaterialSolid Carbide
CoatingTiAlN
Description
The Kennametal 6187511 is a XPLT060310SRD solid carbide indexable insert, grade KCPM40, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Ansi codeXPPW060310SRD
Chip breakerD
Coating finishTiAlN
Coating processPVD
Corner radius0.0390
Cutter series compatibility7792VXP06
Cutting edge styleChamfered; Honed
Included angle degree90
Inscribed circle0.2760
Inscribed circle range0.2500 to 0.3000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size06
Insert size code060310
Insert styleXPPW
Iso codeXPLT060310SRD
Length0.2760
Length range0.0000 to 0.3200
Manufacturers catalog numberXPLT060310SRD
Manufacturer gradeKCPM40
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Relief angle11.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in1/8
Thickness range0.1250 to 0.1500
Width0.2760
