Kennametal

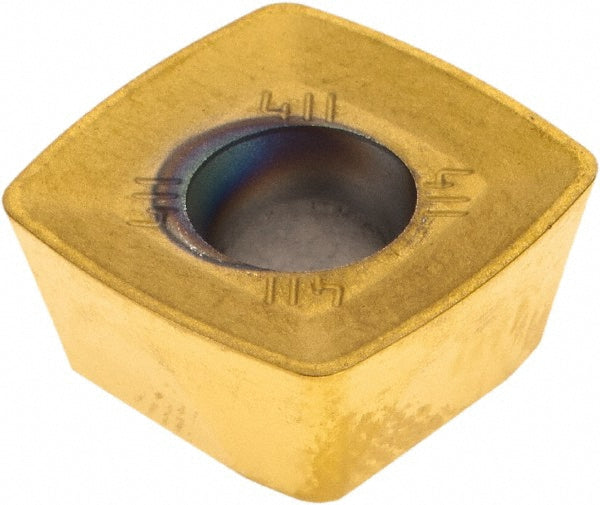

XDPT120512ERD411 Solid Carbide Insert, Grade KCSM40, TiAlN - Kennametal 6187808
MFR# 6187808ISO/ANSI# XDPT120512ERD411Cat# XDPT120512ERD411Series XDPT
$29.49List $35.37
Save 16%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Sold in multiples of 10 — minimum order 10
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeSquare
GradeKCSM40
MaterialSolid Carbide
CoatingTiAlN
Description
The Kennametal 6187808 is a XDPT120512ERD411 solid carbide indexable insert, grade KCSM40, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Ansi codeXDPT120512ERD411
Chip breakerD411
Coating finishTiAlN
Coating processPVD
Corner radius in3/64
Cutter series compatibility7792VXD12
Cutting edge styleHoned
Included angle degree90
Inscribed circle in1/2
Inscribed circle range0.5000 to 0.5100
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size12
Insert size code120512
Insert styleXDPT
Iso codeXDPT120512ERD411
Length in1/2
Length range0.5000 to 0.6000
Manufacturers catalog numberXDPT120512ERD411
Manufacturer gradeKCSM40
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Relief angle15.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in7/32
Thickness range0.2000 to 0.2200
Width in1/2
