Kennametal

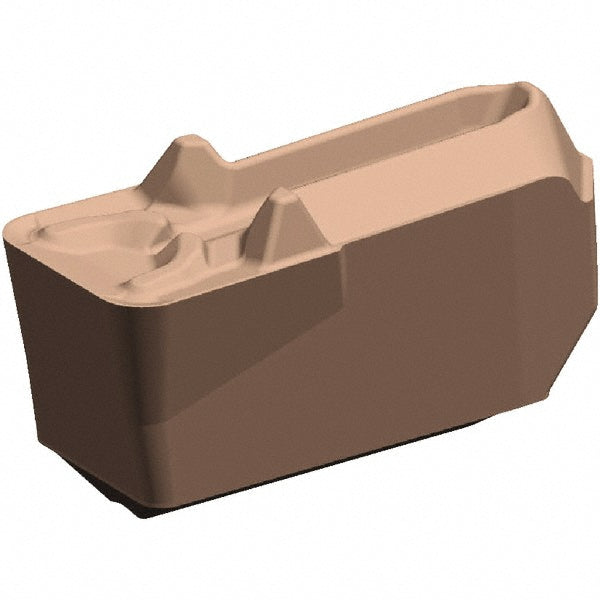

Carbide Insert, Grade KCU25, Al2O3 - Kennametal 6231855
MFR# 6231855Series Beyond Evolution
$20.37List $24.87
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeKCU25
MaterialCarbide
CoatingAl2O3
Description
The Kennametal 6231855 is a carbide indexable insert, grade KCU25, Al2O3 coated.
Specifications
Chip breakerGUN
Coating finishAl2O3
Coating processPVD
Corner radius0.0080
Cutting height0.1260
Cutting width0.0940
Insert handNeutral
Insert materialCarbide
Insert size2
Insert styleEG
Insert thickness0.1260
Manufacturer gradeKCU25
Maximum depth of cut0.0700
Maximum depth of cut range0.0000 to 0.0750
Measurement typeDecimal Inch
Rake angle2.25
