Kennametal

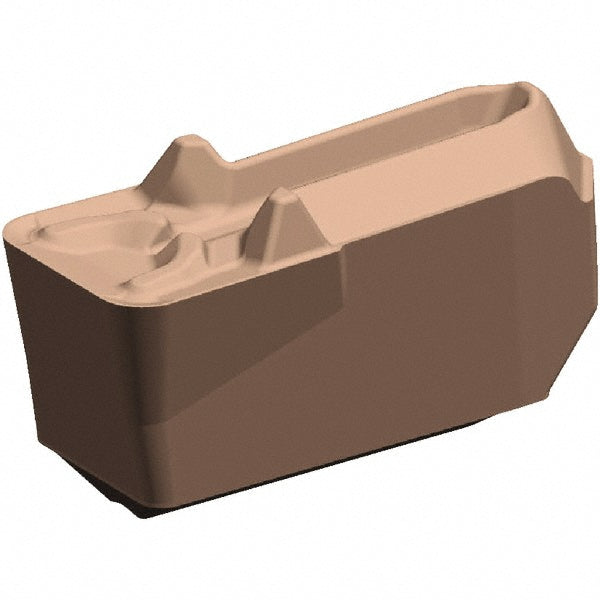

Carbide Insert, Grade KCU25, Al2O3 - Kennametal 6231857
MFR# 6231857Series Beyond Evolution
$21.26List $25.94
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeKCU25
MaterialCarbide
CoatingAl2O3
Description
The Kennametal 6231857 is a carbide indexable insert, grade KCU25, Al2O3 coated.
Specifications
Chip breakerGUN
Coating finishAl2O3
Coating processPVD
Corner radius0.0160
Cutting height0.1580
Cutting width in1/8
Insert handNeutral
Insert materialCarbide
Insert size3
Insert styleEG
Insert thickness0.1580
Manufacturer gradeKCU25
Maximum depth of cut0.0870
Maximum depth of cut range0.0750 to 0.1000
Measurement typeDecimal Inch
Rake angle2.25
