Kennametal
#29 Solid Carbide Drill Bit, AlTiN, 140° point - Kennametal 6350381
MFR# 6350381
$189.42List $242.94
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingAlTiN
Description

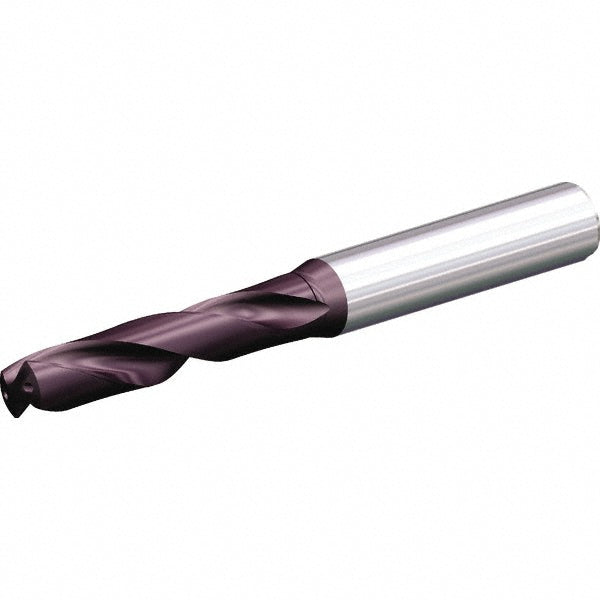

The Kennametal 6350381 is a #29 Solid Carbide drill bit with a AlTiN finish, 140° point. Suited for stainless steel, high-temp alloy.
Specifications
Coating finishAlTiN
Coolant throughYes
Cutting directionRight Hand
Drill bit gradeSpecialized
Drill bit materialSolid Carbide
Drill bit size0.1360
Drill bit size range0.1000 - 0.1500
Drill bit size wire#29
Drill point angle degrees140
Drill point length0.0201
Flute by diameter ratio5xD
Flute length1.1024
Flute typeRegular Spiral
Material gradeKCMS15
Maximum drilling depth0.9055
Number of flutes2
Overall length2.5984
Primary workpiece materialStainless Steel; High-Temp Alloy
Shank diameter (mm)6
Shank length1.4173
Shank typeStraight
