Kennametal

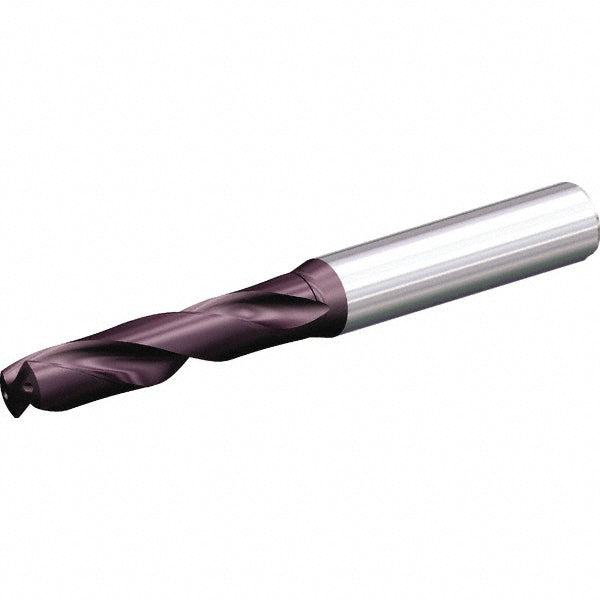

0.1417" Solid Carbide Drill Bit, AlTiN, 140° point - Kennametal 6350384
MFR# 6350384
$189.42List $242.94
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingAlTiN
Description
The Kennametal 6350384 is a 0.1417" Solid Carbide drill bit with a AlTiN finish, 140° point. Suited for stainless steel, high-temp alloy.
Specifications
Coating finishAlTiN
Coolant throughYes
Cutting directionRight Hand
Drill bit gradeSpecialized
Drill bit materialSolid Carbide
Drill bit size0.1417
Drill bit size range0.1000 - 0.1500
Drill point angle degrees140
Drill point length0.0209
Flute by diameter ratio5xD
Flute length1.1024
Flute typeRegular Spiral
Material gradeKCMS15
Maximum drilling depth0.9055
Number of flutes2
Overall length2.5984
Primary workpiece materialStainless Steel; High-Temp Alloy
Shank diameter (mm)6
Shank length1.4173
Shank typeStraight
