Kennametal

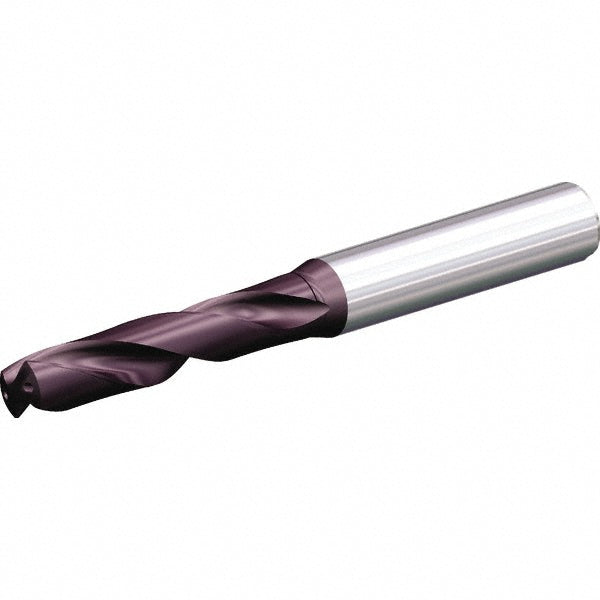

#24 Solid Carbide Drill Bit, AlTiN, 140° point - Kennametal 6350389
MFR# 6350389
$189.42List $242.94
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingAlTiN
Description
The Kennametal 6350389 is a #24 Solid Carbide drill bit with a AlTiN finish, 140° point. Suited for stainless steel, high-temp alloy.
Specifications
Coating finishAlTiN
Coolant throughYes
Cutting directionRight Hand
Drill bit gradeSpecialized
Drill bit materialSolid Carbide
Drill bit size0.1520
Drill bit size range0.1500 - 0.2000
Drill bit size wire#24
Drill point angle degrees140
Drill point length0.0224
Flute by diameter ratio5xD
Flute length1.4173
Flute typeRegular Spiral
Material gradeKCMS15
Maximum drilling depth1.1417
Number of flutes2
Overall length2.9134
Primary workpiece materialStainless Steel; High-Temp Alloy
Shank diameter (mm)6
Shank length1.4173
Shank typeStraight
Can't find your exact tool?Send us a part number — we'll cross-reference it.
Dull tools?Regrinding extends tool life and saves cost.
Alternate & equivalent tools
Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.
Spec-matched alternates load as the catalog fills in. Meanwhile, browse the End Mills collection and filter by diameter, flutes & length of cut.
