Kennametal

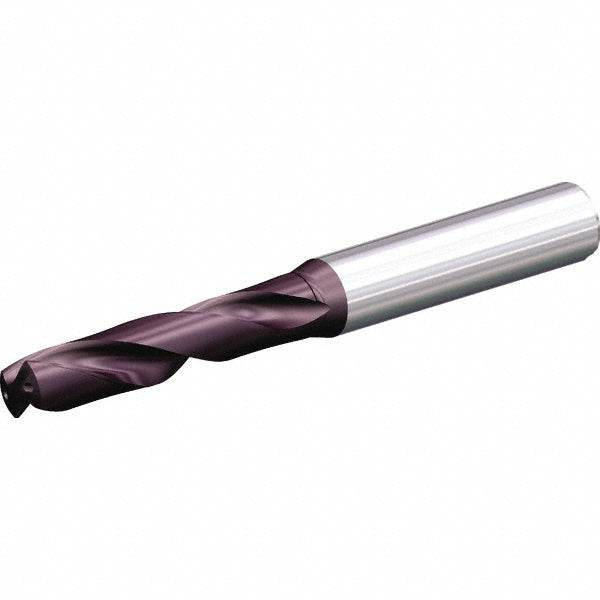

3/16" Solid Carbide Drill Bit, AlTiN, 140° point - Kennametal 6350402
MFR# 6350402
$143.85List $184.49
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size3/16
Flutes2
CoatingAlTiN
Description
The Kennametal 6350402 is a 3/16" Solid Carbide drill bit with a AlTiN finish, 140° point. Suited for stainless steel, high-temp alloy.
Specifications
Coating finishAlTiN
Coolant throughYes
Cutting directionRight Hand
Drill bit gradeSpecialized
Drill bit materialSolid Carbide
Drill bit size in3/16
Drill bit size range0.1500 - 0.2000
Drill point angle degrees140
Drill point length0.0276
Flute by diameter ratio5xD
Flute length1.7323
Flute typeRegular Spiral
Material gradeKCMS15
Maximum drilling depth1.3780
Number of flutes2
Overall length3.2283
Primary workpiece materialStainless Steel; High-Temp Alloy
Shank diameter (mm)6
Shank length1.4173
Shank typeStraight
