Kennametal

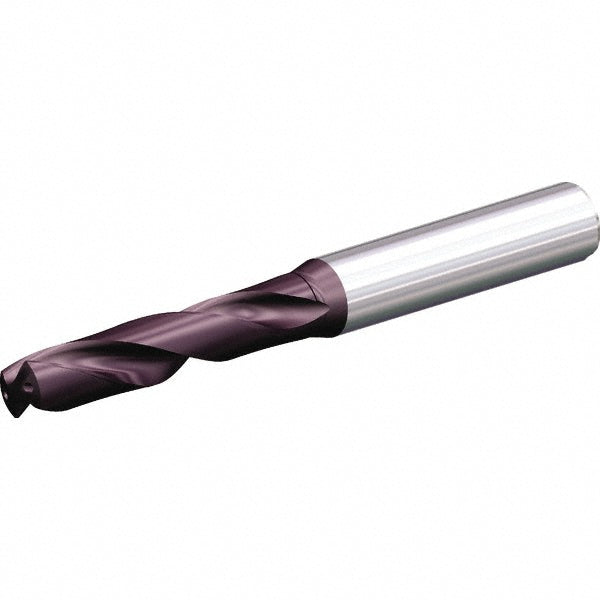

#7 Solid Carbide Drill Bit, AlTiN, 140° point - Kennametal 6350408
MFR# 6350408
$189.42List $242.94
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingAlTiN
Description
The Kennametal 6350408 is a #7 Solid Carbide drill bit with a AlTiN finish, 140° point. Suited for stainless steel, high-temp alloy.
Specifications
Coating finishAlTiN
Coolant throughYes
Cutting directionRight Hand
Drill bit gradeSpecialized
Drill bit materialSolid Carbide
Drill bit size0.2010
Drill bit size range0.2000 - 0.2500
Drill bit size wire#7
Drill point angle degrees140
Drill point length0.0299
Flute by diameter ratio5xD
Flute length1.7323
Flute typeRegular Spiral
Material gradeKCMS15
Maximum drilling depth1.3780
Number of flutes2
Overall length3.2283
Primary workpiece materialStainless Steel; High-Temp Alloy
Shank diameter (mm)6
Shank length1.4173
Shank typeStraight
