Kennametal

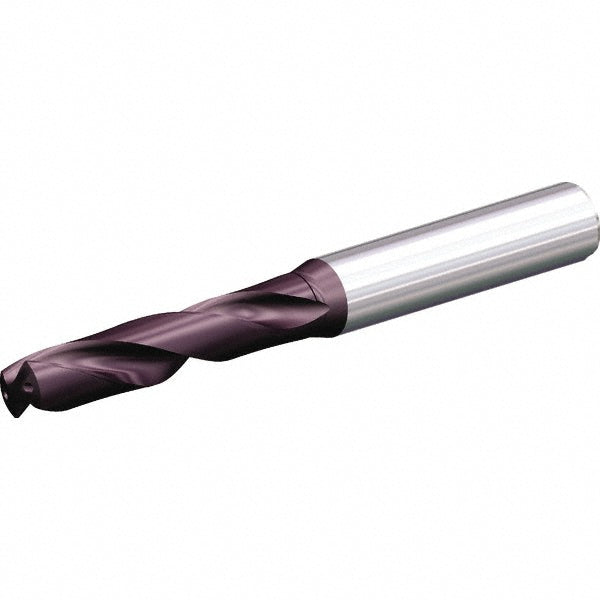

0.4055" Solid Carbide Drill Bit, AlTiN, 140° point - Kennametal 6350476
MFR# 6350476
$385.21List $494.05
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingAlTiN
Description
The Kennametal 6350476 is a 0.4055" Solid Carbide drill bit with a AlTiN finish, 140° point. Suited for stainless steel, high-temp alloy.
Specifications
Coating finishAlTiN
Coolant throughYes
Cutting directionRight Hand
Drill bit gradeSpecialized
Drill bit materialSolid Carbide
Drill bit size0.4055
Drill bit size range0.4000 - 0.5000
Drill point angle degrees140
Drill point length0.0598
Flute by diameter ratio5xD
Flute length2.7953
Flute typeRegular Spiral
Material gradeKCMS15
Maximum drilling depth2.2047
Number of flutes2
Overall length4.6457
Primary workpiece materialStainless Steel; High-Temp Alloy
Shank diameter (mm)12
Shank length1.7717
Shank typeStraight
