Kennametal

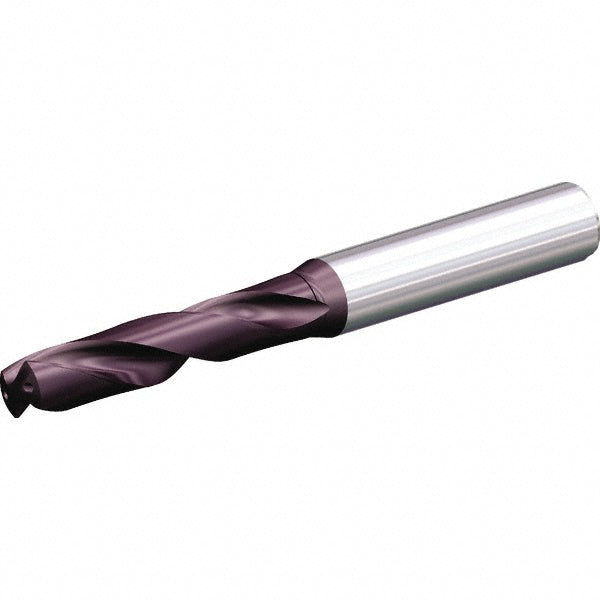

0.6496" Solid Carbide Drill Bit, AlTiN, 140° point - Kennametal 6350518
MFR# 6350518
$951.55List $1,220.41
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingAlTiN
Description
The Kennametal 6350518 is a 0.6496" Solid Carbide drill bit with a AlTiN finish, 140° point. Suited for stainless steel, high-temp alloy.
Specifications
Coating finishAlTiN
Coolant throughYes
Cutting directionRight Hand
Drill bit gradeSpecialized
Drill bit materialSolid Carbide
Drill bit size0.6496
Drill bit size range0.5000 - 0.6500
Drill point angle degrees140
Drill point length (mm)2.44
Flute by diameter ratio5xD
Flute length3.6614
Flute typeRegular Spiral
Material gradeKCMS15
Maximum drilling depth (mm)71.00
Number of flutes2
Overall length5.6299
Point typeProprietary
Primary workpiece materialStainless Steel; High-Temp Alloy
Shank diameter (mm)18
Shank length (mm)48
Shank typeStraight
Spiral typeRegular
