Kennametal

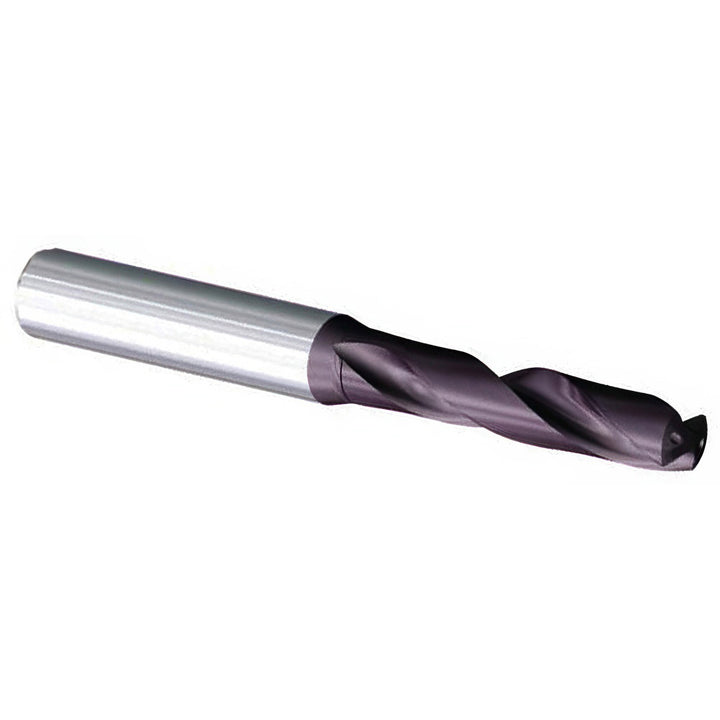

1/4" Solid Carbide Drill Bit, AlTiN, 140° point - Kennametal 6351268
MFR# 6351268
$249.40List $319.87
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size1/4
Flutes2
CoatingAlTiN
Description
The Kennametal 6351268 is a 1/4" Solid Carbide drill bit with a AlTiN finish, 140° point. Suited for stainless steel, high-temp alloy.
Specifications
Coating finishAlTiN
Coolant throughYes
Cutting directionRight Hand
Drill bit gradeSpecialized
Drill bit materialSolid Carbide
Drill bit size in1/4
Drill bit size range0.2500 - 0.3000
Drill point angle degrees140
Flute by diameter ratio5xD
Flute length1.6929
Flute typeRegular Spiral
Material gradeKCMS15
Maximum drilling depth (mm)34.90
Number of flutes2
Overall length3.2283
Primary workpiece materialStainless Steel; High-Temp Alloy
Shank diameter in1/4
Shank length (mm)36.5
Shank typeStraight
