Kennametal

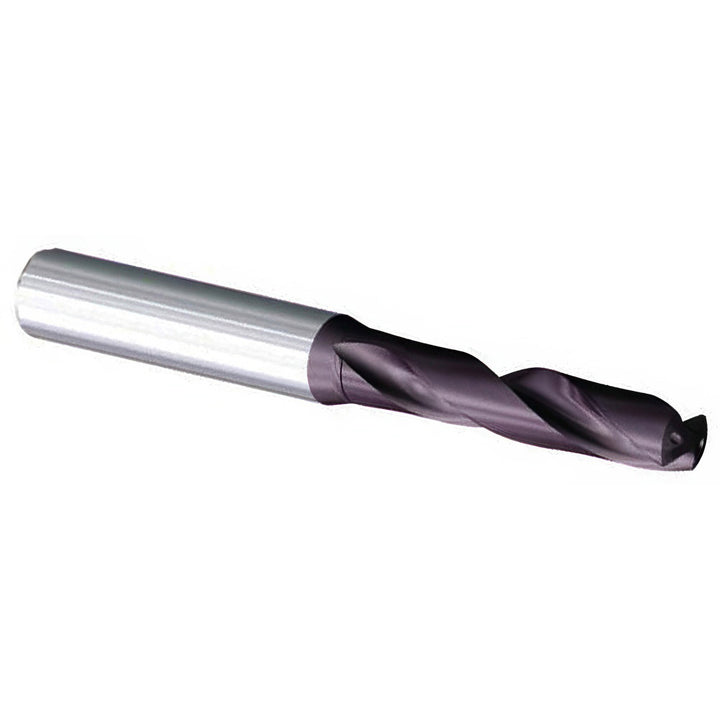

17/64" Solid Carbide Drill Bit, AlTiN, 140° point - Kennametal 6351280
MFR# 6351280
$249.40List $319.87
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size17/64
Flutes2
CoatingAlTiN
Description
The Kennametal 6351280 is a 17/64" Solid Carbide drill bit with a AlTiN finish, 140° point. Suited for stainless steel, high-temp alloy.
Specifications
Coating finishAlTiN
Coolant throughYes
Cutting directionRight Hand
Drill bit gradeSpecialized
Drill bit materialSolid Carbide
Drill bit size in17/64
Drill bit size range0.2500 - 0.3000
Drill point angle degrees140
Flute by diameter ratio5xD
Flute length1.9685
Flute typeRegular Spiral
Material gradeKCMS15
Maximum drilling depth (mm)40.30
Number of flutes2
Overall length3.5827
Primary workpiece materialStainless Steel; High-Temp Alloy
Shank diameter in5/16
Shank length (mm)38.5
Shank typeStraight
