Kennametal

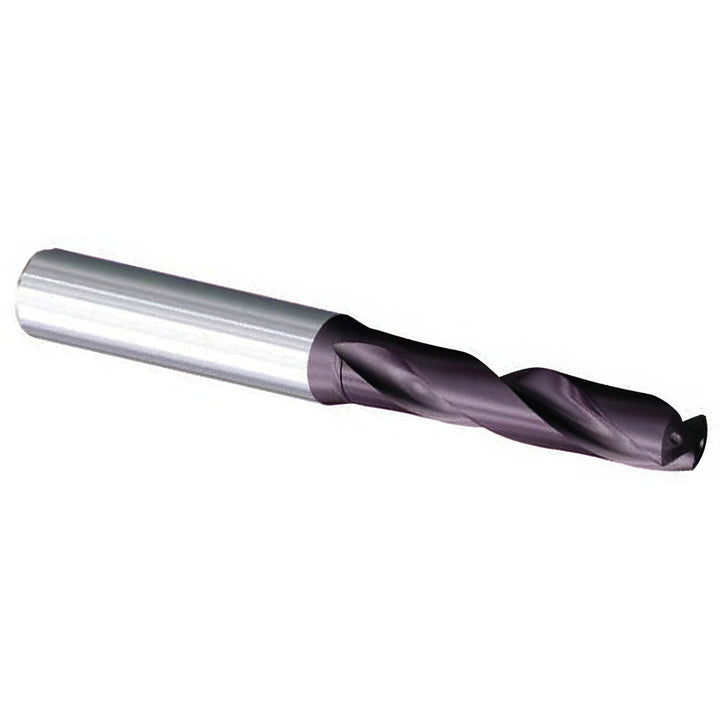

25/64" Solid Carbide Drill Bit, AlTiN, 140° point - Kennametal 6351335
MFR# 6351335
$280.87List $360.23
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size25/64
Flutes2
CoatingAlTiN
Description
The Kennametal 6351335 is a 25/64" Solid Carbide drill bit with a AlTiN finish, 140° point. Suited for stainless steel, high-temp alloy.
Specifications
Coating finishAlTiN
Coolant throughYes
Cutting directionRight Hand
Drill bit gradeSpecialized
Drill bit materialSolid Carbide
Drill bit size in25/64
Drill bit size range0.3500 - 0.4000
Drill point angle degrees140
Flute by diameter ratio5xD
Flute length2.5984
Flute typeRegular Spiral
Material gradeKCMS15
Maximum drilling depth (mm)53.10
Number of flutes2
Overall length4.3701
Primary workpiece materialStainless Steel; High-Temp Alloy
Shank diameter in7/16
Shank length (mm)42.5
Shank typeStraight
