Kennametal

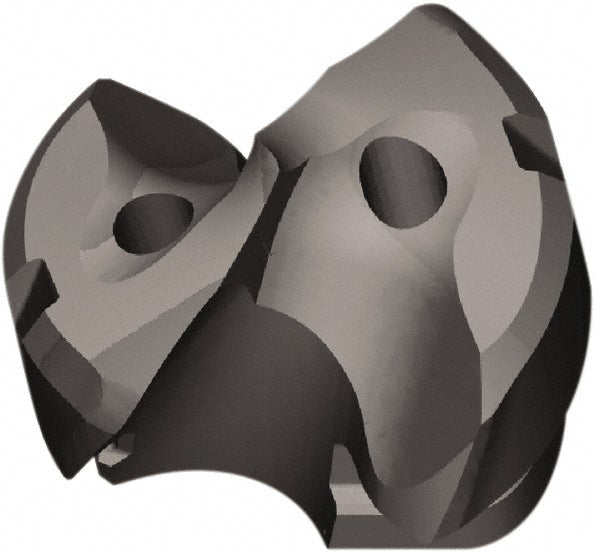

Carbide Insert, Grade KC7410, AlCr - Kennametal 6370360
MFR# 6370360Series KTFST
$127.71List $143.48
Save 10%
Stock and current price confirmed on request. Ask us →
We check the supplier's stock and today's price for this item before you order, and reply the same business day.
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
GradeKC7410
CoatingAlCr
Description
The Kennametal 6370360 is a carbide indexable insert, grade KC7410, AlCr coated. Suited for cast iron.
Specifications
ApplicationsDrilling
Coating finishAlCr
Coating processPVD
Coolant throughYes
Cutting diameter0.6772
DrillingStackedPlates; 100160773
Drill point angle140
Flute length (mm)9.00
Flute typeHelical
Functional length0.3386
Height (mm)13.00
Included angle degree140
Insert geometryHPC
Insert holding methodClamp
Insert seat sizeV
Iso numberKTFST17200HPCM
Manufacturer gradeKC7410
Material gradeK15
Number of flutes2
Overall length projection0.4953
Point typeStandard
Primary workpiece materialCast Iron
Spiral typeRegular Spiral
StyleKTFST
Tip materialSolid Carbide
Tooldimensions2flute/4margin/coolant
