Kennametal

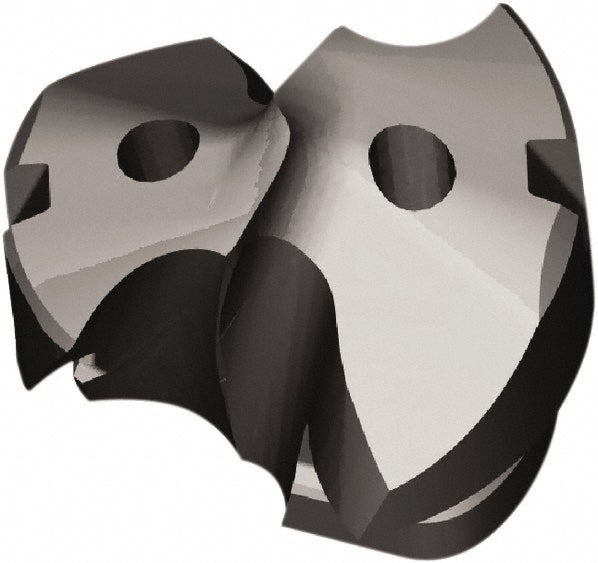

Carbide Insert, Grade KCMS15, AlTiN - Kennametal 6370990
MFR# 6370990Series KTFST
$109.46List $125.15
Save 12%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
GradeKCMS15
CoatingAlTiN
Description
The Kennametal 6370990 is a carbide indexable insert, grade KCMS15, AlTiN coated. Suited for stainless steel.
Specifications
ApplicationsDrilling
Coating finishAlTiN
Coating processPVD
Coolant throughYes
Cutting diameter in5/16
DrillingStackedPlates
Drill point angle140
Flute length (mm)4.00
Flute typeHelical
Functional length0.1563
Height (mm)6.00
Included angle degree140
Insert geometryHPL
Insert holding methodClamp
Insert seat sizeE
Iso numberKTFST03125HPL
Manufacturer gradeKCMS15
Material gradeFine Grain
Number of flutes2
Overall length projection0.2236
Point typeStandard
Primary workpiece materialStainless Steel
Spiral typeRegular Spiral
StyleKTFST
Tip materialSolid Carbide
Tooldimensions2flute/2margin/coolant
