Kennametal
Carbide Insert, Grade KCMS15, AlTiN - Kennametal 6371014
MFR# 6371014Series KTFST
$237.61List $299.45
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
GradeKCMS15
CoatingAlTiN
Description

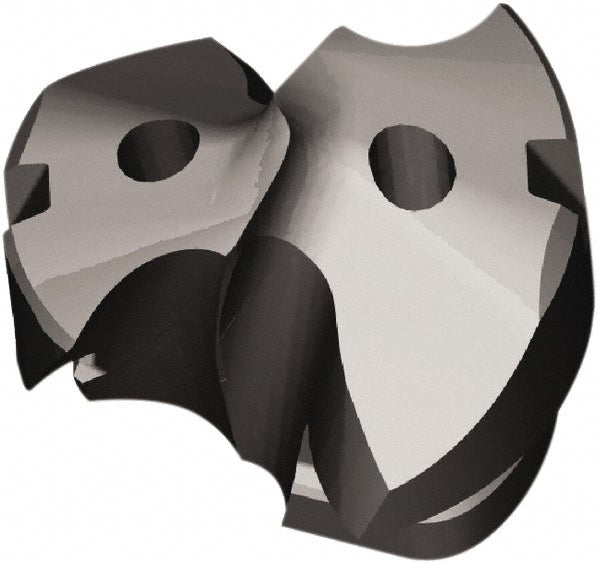

The Kennametal 6371014 is a carbide indexable insert, grade KCMS15, AlTiN coated. Suited for stainless steel.
Specifications
ApplicationsDrilling
Coating finishAlTiN
Coating processPVD
Coolant throughYes
Cutting diameter in1
DrillingStackedPlates
Drill point angle140
Flute length (mm)13.00
Flute typeHelical
Functional length0.5000
Height (mm)18.00
Included angle degree140
Insert geometryHPL
Insert holding methodClamp
Insert seat sizeZD
Iso numberKTFST10000HPL
Manufacturer gradeKCMS15
Material gradeFine Grain
Number of flutes2
Overall length projection0.7063
Point typeStandard
Primary workpiece materialStainless Steel
Spiral typeRegular Spiral
StyleKTFST
Tip materialSolid Carbide
Tooldimensions2flute/2margin/coolant
Can't find your exact tool?Send us a part number — we'll cross-reference it.
Dull tools?Regrinding extends tool life and saves cost.
Alternate & equivalent tools
Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.
Spec-matched alternates load as the catalog fills in. Meanwhile, browse the End Mills collection and filter by diameter, flutes & length of cut.
