Kennametal

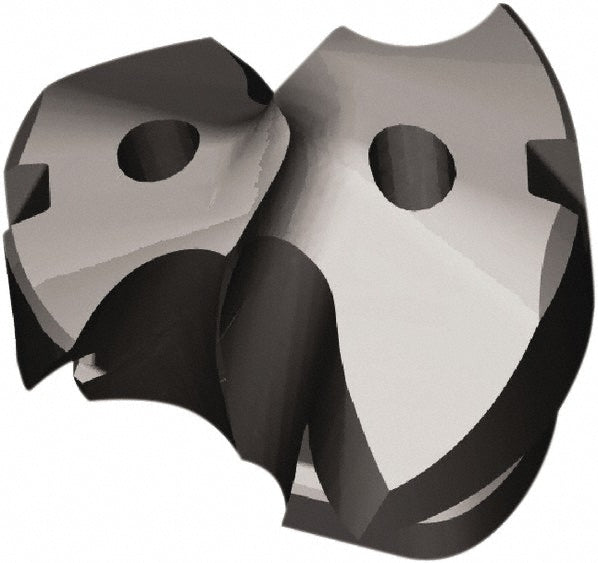

Carbide Insert, Grade KCMS15, AlTiN - Kennametal 6371031
MFR# 6371031Series KTFST
$121.90List $139.38
Save 12%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
GradeKCMS15
CoatingAlTiN
Description
The Kennametal 6371031 is a carbide indexable insert, grade KCMS15, AlTiN coated. Suited for stainless steel.
Specifications
ApplicationsDrilling
Coating finishAlTiN
Coating processPVD
Coolant throughYes
Cutting diameter0.3543
DrillingStackedPlates
Drill point angle140
Flute length (mm)4.00
Flute typeHelical
Functional length0.1772
Height (mm)6.00
Included angle degree140
Insert geometryHPL
Insert holding methodClamp
Insert seat sizeH
Iso numberKTFST09000HPLM
Manufacturer gradeKCMS15
Material gradeFine Grain
Number of flutes2
Overall length projection0.2532
Point typeStandard
Primary workpiece materialStainless Steel
Spiral typeRegular Spiral
StyleKTFST
Tip materialSolid Carbide
Tooldimensions2flute/2margin/coolant
