Kennametal

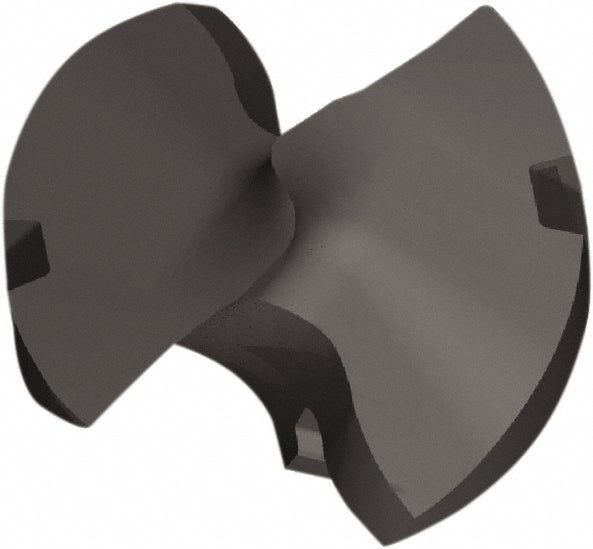

Carbide Insert, Grade KCP15A, AlTiN - Kennametal 6388559
MFR# 6388559Series KTFSS
$99.41List $113.66
Save 12%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
GradeKCP15A
CoatingAlTiN
Description
The Kennametal 6388559 is a carbide indexable insert, grade KCP15A, AlTiN coated. Suited for steel, cast iron.
Specifications
ApplicationsDrilling
Coating finishAlTiN
Coating processPVD
Coolant throughNo
Cutting diameter0.2756
DrillingStackedPlates
Drill point angle180
Flute length (mm)3.00
Flute typeHelical
Functional length0.1319
Height (mm)5.00
Included angle degree180
Insert geometryHPG
Insert holding methodClamp
Insert seat sizeC
Iso numberKTFSS06700HPGM
Manufacturer gradeKCP15A
Material gradeFine Grain
Number of flutes2
Overall length projection0.1913
Point typeStandard
Primary workpiece materialSteel; Cast Iron
Spiral typeRegular Spiral
StyleKTFSS
Tip materialSolid Carbide
Tooldimensions2flute/2margin/nocool; 100160772
