Kennametal
Carbide Insert, Grade KCP15A, AlTiN - Kennametal 6388735
MFR# 6388735Series KTFSS
$191.37List $218.80
Save 12%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
GradeKCP15A
CoatingAlTiN
Description

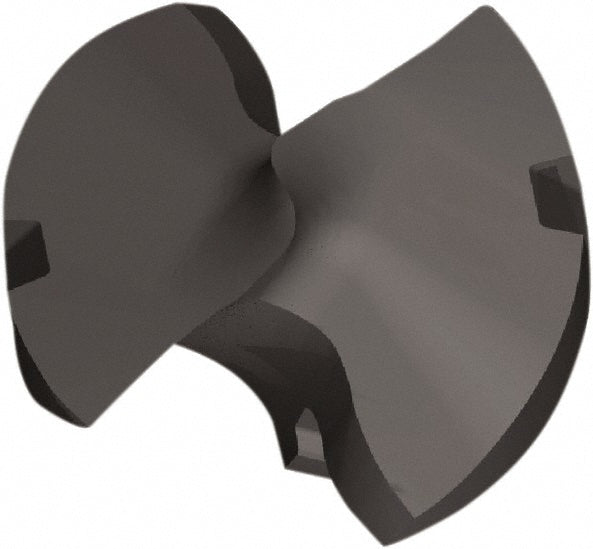

The Kennametal 6388735 is a carbide indexable insert, grade KCP15A, AlTiN coated. Suited for steel, cast iron.
Specifications
ApplicationsDrilling
Coating finishAlTiN
Coating processPVD
Coolant throughNo
Cutting diameter in15/16
DrillingStackedPlates
Drill point angle180
Flute length (mm)12.00
Flute typeHelical
Functional length0.4688
Height (mm)17.00
Included angle degree180
Insert geometryHPG
Insert holding methodClamp
Insert seat sizeZB
Iso numberKTFSS09375HPG
Manufacturer gradeKCP15A
Material gradeFine Grain
Number of flutes2
Overall length projection0.6668
Point typeStandard
Primary workpiece materialSteel; Cast Iron
Spiral typeRegular Spiral
StyleKTFSS
Tip materialSolid Carbide
Tooldimensions2flute/2margin/nocool; 100160772
