Kennametal

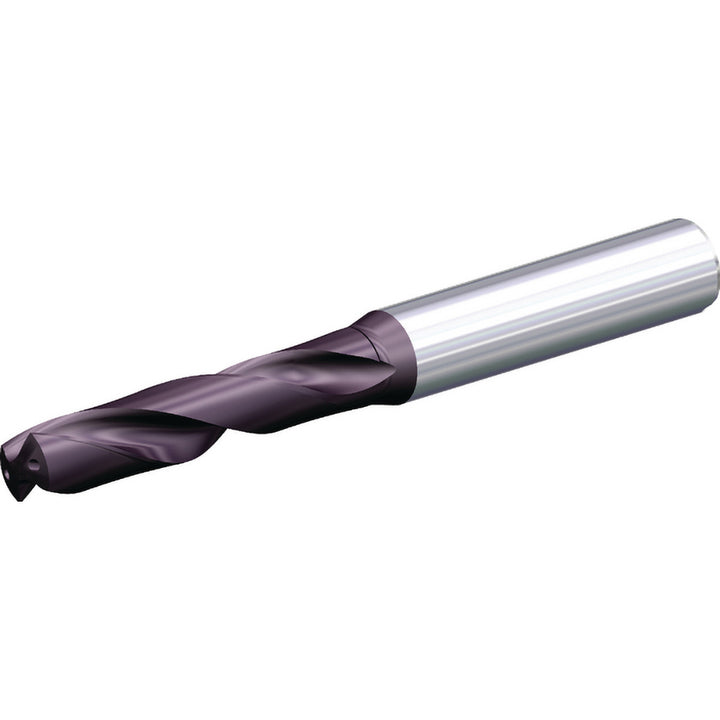

3/16" Solid Carbide Drill Bit, AlTiN, 140° point - Kennametal 6393581
MFR# 6393581Series B210
$184.46List $232.46
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size3/16
Flutes2
CoatingAlTiN
Description
The Kennametal 6393581 is a 3/16" Solid Carbide drill bit with a AlTiN finish, 140° point. Series B210.
Specifications
Coating finishAlTiN
Coolant throughYes
Cutting directionRight Hand
Drill bit size in3/16
Drill bit size range0.1500 to 0.2000
Drill point angle140
Drill point length0.0276
Flute by diameter ratio4xD
Flute length1.1024
Flute typeRegular Spiral
Maximum drilling depth0.7874
Number of flutes2
Overall length2.5984
Point typeStandard
Shank diameter0.2362
Shank length1.4173
Shank typeStraight
Spiral typeRegular
Tool materialSolid Carbide
