Kennametal
0.2656" Solid Carbide Drill Bit, AlTiN, 140° point - Kennametal 6393601
MFR# 6393601Series B211
$189.37List $242.87
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingAlTiN
Description

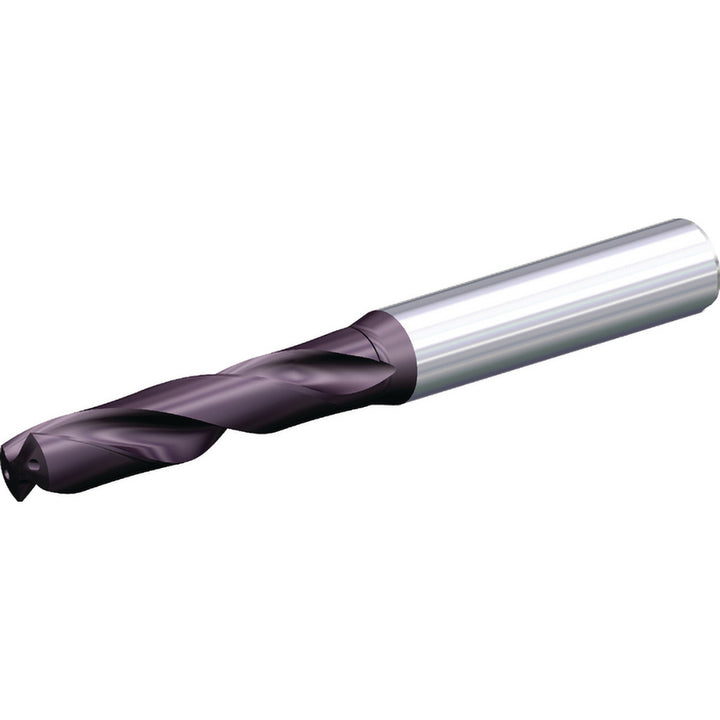

The Kennametal 6393601 is a 0.2656" Solid Carbide drill bit with a AlTiN finish, 140° point. Series B211.
Specifications
Coating finishAlTiN
Coolant throughYes
Cutting directionRight Hand
Drill bit materialSolid Carbide
Drill bit size0.2656
Drill point angle degrees140
Drill point length0.0394
Flute by diameter ratio6xD
Flute length2.0866
Flute typeHelical
Maximum drilling depth1.6929
Number of flutes2
Overall length3.5827
Shank diameter0.3150
Shank length1.4173
Shank typeStraight
