Kennametal

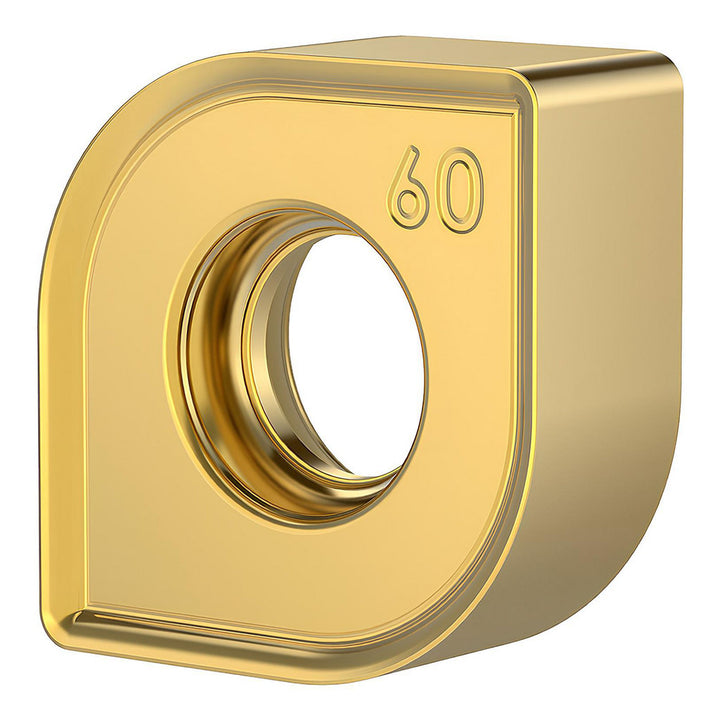

SNHJ120632SNGDH Solid Carbide Insert, Grade KCSM40, TiAlN - Kennametal 6397372
MFR# 6397372ISO/ANSI# SNHJ120632SNGDHCat# SNHJ120632SNGDHSeries SNHJ
$50.78List $61.99
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeSquare
GradeKCSM40
MaterialSolid Carbide
CoatingTiAlN
Description
The Kennametal 6397372 is a SNHJ120632SNGDH solid carbide indexable insert, grade KCSM40, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Ansi codeSNHJ448SNGDH
Chip breakerDH
Coating finishTiAlN
Coating processPVD
Corner radius in1/8
Cutter series compatibilityKSSM
Cutting edge styleChamfered; Honed
Hole diameter0.1969
Included angle degree90
Inscribed circle in1/2
Inscribed circle range0.5000 to 0.5100
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size4
Insert size code448
Insert styleSNHJ
Iso codeSNHJ120632SNGDH
Length in1/2
Length range0.5000 to 0.6000
Manufacturers catalog numberSNHJ120632SNGDH
Manufacturer gradeKCSM40
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Maximum depth of cut0.5000
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Relief angle0.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.1780
Thickness range0.1750 to 0.1850
Width in1/2
