Kennametal
Indexable Grooving - Kennametal 6401818
MFR# 6401818Cat# A4M50L0519MCSeries A4
$264.29List $316.99
Save 16%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description

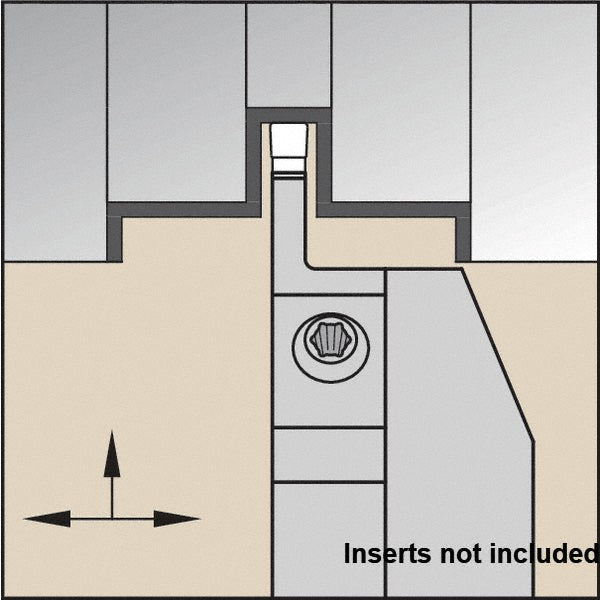

The Kennametal 6401818 indexable grooving. Series A4.
Specifications
Blade height (mm)34.29
Blade overall length (mm)5.00
Blade styleA4M-C
Blade width (mm)11.65
Cartridge size50
Compatible cartridge size50
Compatible insert styleA4G0500M05P
Cutting directionLeft Hand
Insert seat size5
Manufacturers catalog numberA4M50L0519MC
Maximum depth of cut (mm)19.00
Maximum groove width (mm)5.00
Maximum insert width (mm)5.00
Minimum groove width (mm)5.00
Minimum insert width (mm)5.00
Overall length (mm)59.50
