Kennametal

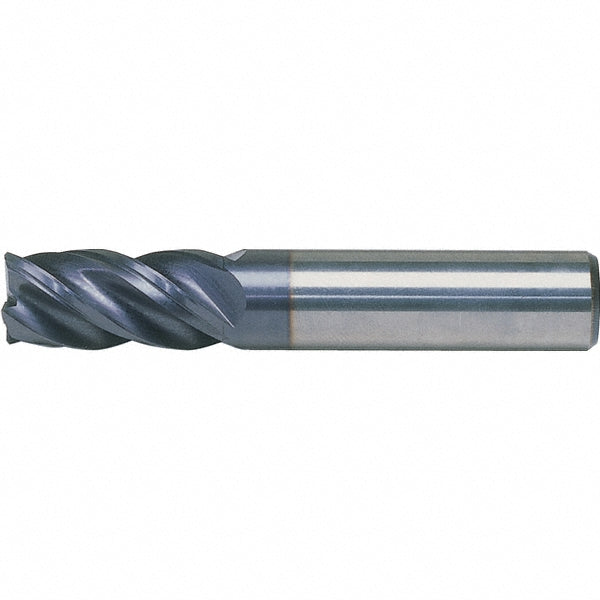

5/16" 4-Flute Solid Carbide Square End Mill, AlTiN - Kennametal 6413142

MFR# 6413142Series HPHV

$92.16List $118.21 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter5/16

Flutes4

MaterialSolid Carbide

CoatingAlTiN

Description

The Kennametal 6413142 is a 5/16 4-flute Solid Carbide (KCPM15) square end mill with a AlTiN finish for longer tool life. Suited for steel, stainless steel, cast iron, hardened materials. 1-1/4 length of cut, 3-1/4 overall length. Series HPHV.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishAlTiN

Coating finish familyAlTiN

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle38

Length of cut in1-1/4

Material gradeKCPM15

Mill diameter in5/16

Number of flutes4

Overall length in3-1/4

Primary workpiece materialSteel; Stainless Steel; Cast Iron; Hardened Materials

Shank diameter in5/16

Single or double endSingle

System of measurementFractional Inch

Variable helixNo

Variable indexYes
