Kennametal

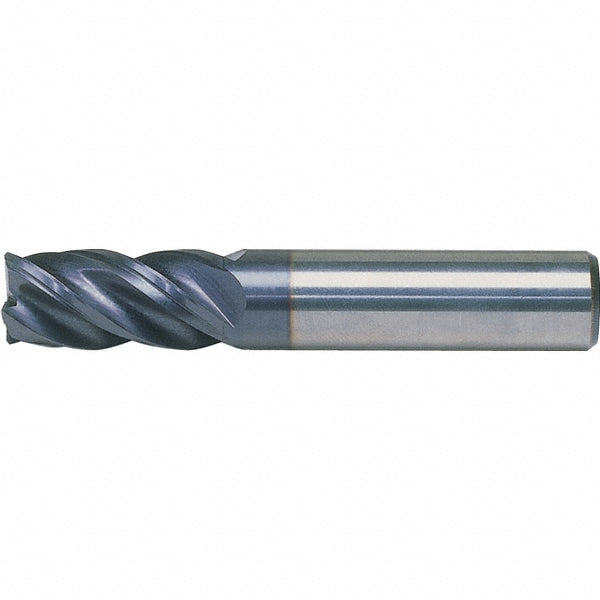

3/4" 4-Flute Solid Carbide Square End Mill, AlTiN - Kennametal 6413147
MFR# 6413147Series HPHV
$596.52List $765.06
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter3/4
Flutes4
MaterialSolid Carbide
CoatingAlTiN
Description
The Kennametal 6413147 is a 3/4 4-flute Solid Carbide (KCPM15) square end mill with a AlTiN finish for longer tool life. Suited for steel, stainless steel, cast iron, hardened materials. 4 length of cut, 6-1/4 overall length. Series HPHV.
Specifications
CentercuttingYes
ChipbreakerNo
Coating finishAlTiN
Coating finish familyAlTiN
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle38
Length of cut in4
Material gradeKCPM15
Mill diameter in3/4
Number of flutes4
Overall length in6-1/4
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Hardened Materials
Shank diameter in3/4
Single or double endSingle
System of measurementFractional Inch
Variable helixNo
Variable indexYes
