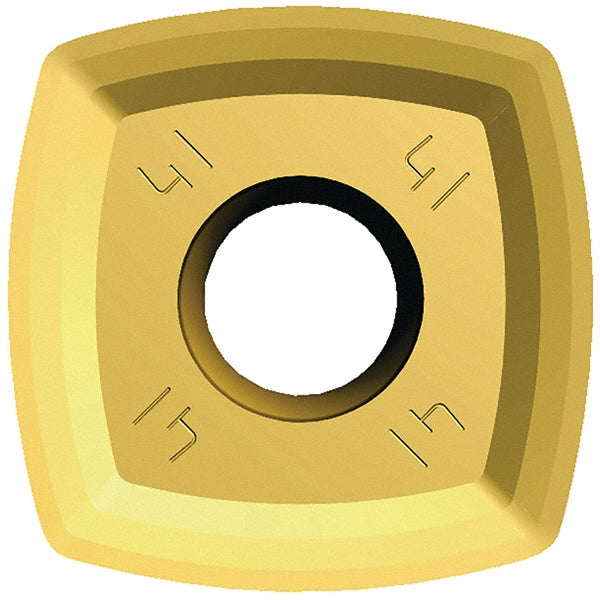

XELT160512ERD41 Solid Carbide Insert, Grade KCSM40, TiAlN - Kennametal 6441069
MFR# 6441069ISO/ANSI# XELT160512ERD41Cat# XELT160512ERD41Series XELT
$51.46List $62.81
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeSquare
GradeKCSM40
MaterialSolid Carbide
CoatingTiAlN
Description
The Kennametal 6441069 is a XELT160512ERD41 solid carbide indexable insert, grade KCSM40, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Ansi codeXELT160512ERD41
Chip breakerD41
Coating finishTiAlN
Coating processPVD
Corner radius in3/64
Cutter series compatibility7792VXE16
Cutting edge styleHoned
Included angle degree90
Inscribed circle0.6610
Inscribed circle range0.6000 to 0.7000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size16
Insert size code160512
Insert styleXELT
Iso codeXELT160512ERD41
Length0.6610
Length range0.6500 to 0.7000
Manufacturers catalog numberXELT160512ERD41
Manufacturer gradeKCSM40
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Relief angle20.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in7/32
Thickness range0.2000 to 0.2200
Width0.6610
