Kennametal

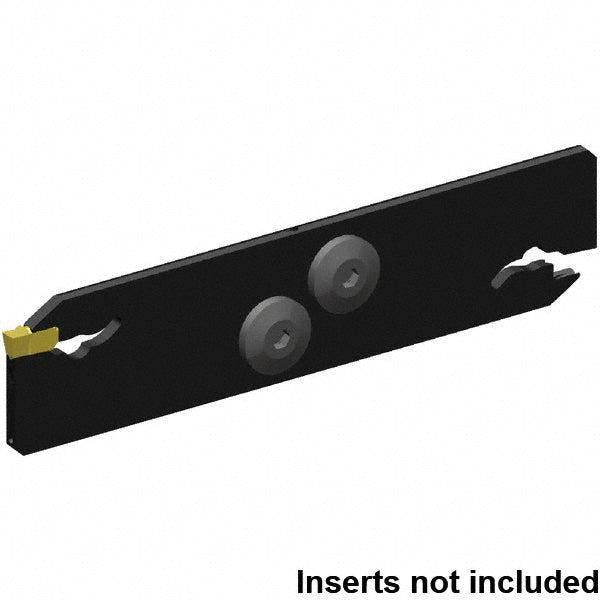

Indexable Cut-Off - Kennametal 6513523
MFR# 6513523Series Beyond Evolution
$228.93List $279.43
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Kennametal 6513523 indexable cut-off. Series Beyond Evolution.
Specifications
Blade height (mm)32.00
Blade overall length (mm)150.25
Blade styleEVBS
Blade width (mm)2.40
Complete insert compatibilityEG0300M03P02
Cutting directionNeutral
Cutting height (mm)25.05
End typeDouble
Insert holding methodClamp
Insert seat size3
Insert styleEG0300M03P02
Insert width (mm)3.00
Maximum depth of cut (mm)50.00
Minimum insert width (mm)3.00
