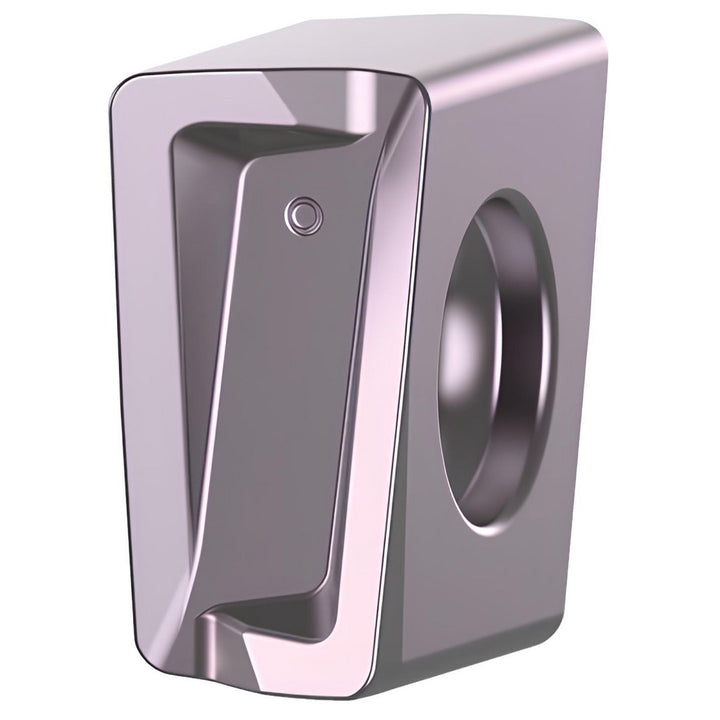

LNGQ120608ERGEKT4 Solid Carbide Insert, Grade KC522M, AlTiN - Kennametal 6525750

Kennametal

LNGQ120608ERGEKT4 Solid Carbide Insert, Grade KC522M, AlTiN - Kennametal 6525750

MFR# 6525750ISO/ANSI# LNGQ120608ERGEKT4Cat# LNGQ120608ERGEKT4Series LNGQ

$49.63List $59.53 Save 16%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Sold in multiples of 5 — minimum order 5

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeRectangle
GradeKC522M
MaterialSolid Carbide
CoatingAlTiN

Description

The Kennametal 6525750 is a LNGQ120608ERGEKT4 solid carbide indexable insert, grade KC522M, AlTiN coated. Suited for steel, stainless steel, cast iron, superalloys & titanium.

Specifications

Ansi codeLNGQ120608ERGEKT4
Chip breakerGE
Coating finishAlTiN
Coating processPVD
Corner radius in1/32
Cutter series compatibilityMill 4-12
Cutting edge styleHoned
Hole diameter0.1929
Included angle degree90
Inscribed circle0.5270
Inscribed circle range0.5100 to 0.6000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeRectangle
Insert size12
Insert size code120608
Insert styleLNGQ
Iso codeLNGQ120608ERGEKT4
Length0.5118
Length range0.5000 to 0.6000
Manufacturers catalog numberLNGQ120608ERGEKT4
Manufacturer gradeKC522M
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
Material gradeC1
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
RakePositive
Relief angle0.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in1/4
Thickness range0.2500 to 0.3500
Width0.5270
