Kennametal

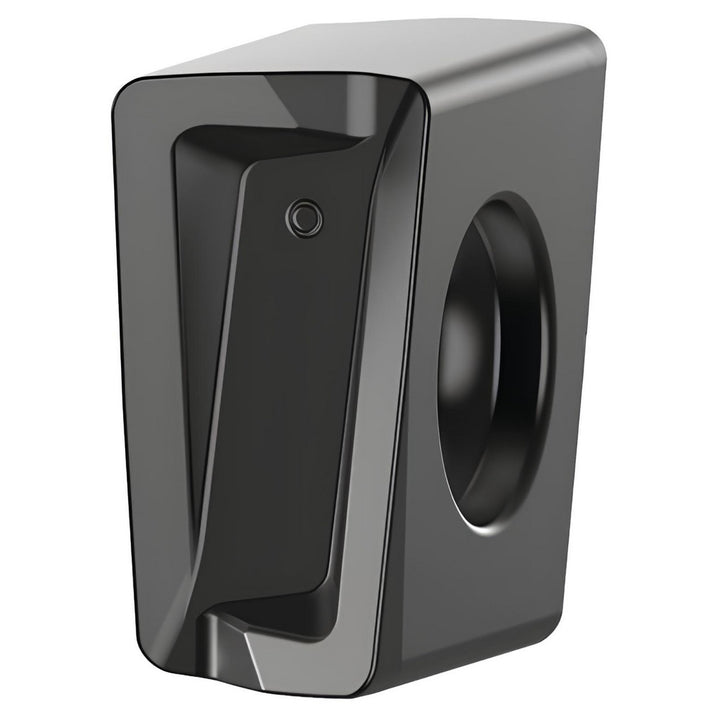

LNGQ120608ERGEKT4 Solid Carbide Insert, Grade KCPK30, TiN - Kennametal 6525753
MFR# 6525753ISO/ANSI# LNGQ120608ERGEKT4Cat# LNGQ120608ERGEKT4Series LNGQ
$42.85List $52.30
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeRectangle
GradeKCPK30
MaterialSolid Carbide
CoatingTiN
Description
The Kennametal 6525753 is a LNGQ120608ERGEKT4 solid carbide indexable insert, grade KCPK30, TiN coated. Suited for steel, stainless steel, cast iron, superalloys & titanium.
Specifications
Ansi codeLNGQ120608ERGEKT4
Chip breakerGE
Coating finishTiN
Coating processCVD
Corner radius in1/32
Cutter series compatibilityMill 4-12
Cutting edge styleHoned
Hole diameter0.1929
Included angle degree90
Inscribed circle0.5270
Inscribed circle range0.5100 to 0.6000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeRectangle
Insert size12
Insert size code120608
Insert styleLNGQ
Iso codeLNGQ120608ERGEKT4
Length0.5118
Length range0.5000 to 0.6000
Manufacturers catalog numberLNGQ120608ERGEKT4
Manufacturer gradeKCPK30
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
Material gradeC1; C5; C6
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
RakePositive
Relief angle0.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in1/4
Thickness range0.2500 to 0.3500
Width0.5270
