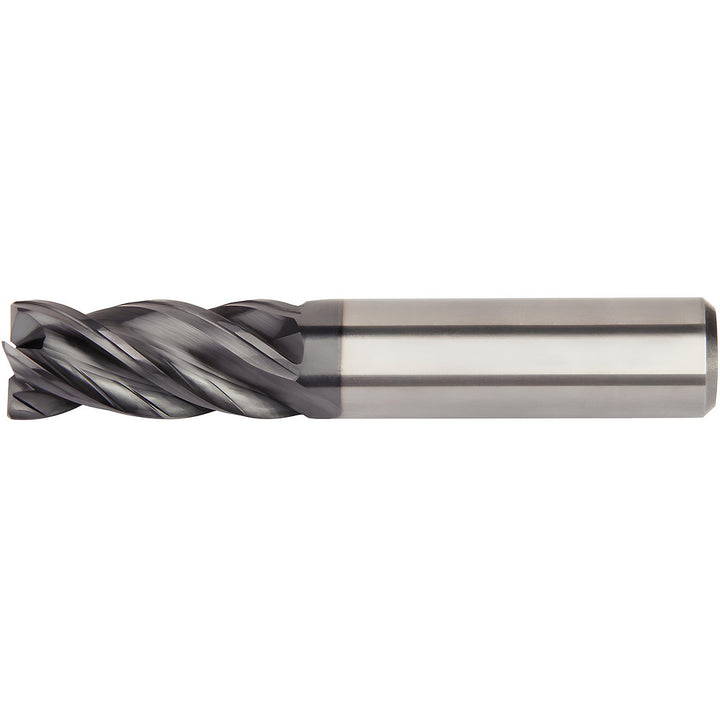

0.1969" 4-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill, AlTiN - Kennametal 6675698

Kennametal

0.1969" 4-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill, AlTiN - Kennametal 6675698

MFR# 6675698Cat# H1TE4CH0500R013HAMSeries H1TE

$77.39List $97.53 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

⚡ Need it urgently? Confirm stock & ship time →

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes4
MaterialSolid Carbide
CoatingAlTiN

Description

The Kennametal 6675698 is a 0.1969 4-flute Solid Carbide (KCPM15) corner radius & corner chamfer end mill with a AlTiN finish for longer tool life. Suited for steel, stainless steel, cast iron, superalloys & titanium, hard material. Series H1TE.

Specifications

Additional informationShouldering; Slotting; Rampdown; Helical Interpolation; Drill Mill; Plunging & Recessing
CentercuttingYes
Chamfer angle45
Chamfer length (mm)0.40
Chamfer width (mm)0.40
ChipbreakerNo
Coating finishAlTiN
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeVariable
Helix styleVariable
Length of cut (mm)13.00
Length typeRegular
Manufacturers catalog numberH1TE4CH0500R013HAM
Material gradeKCPM15
Material removal typeRoughing & Finishing
Mill diameter0.1969
Number of flutes4
Overall length (mm)57.00
PitchNormal
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
Reach length (mm)13.00
Shank diameter (mm)6.00
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixYes
Variable indexYes
