Kennametal

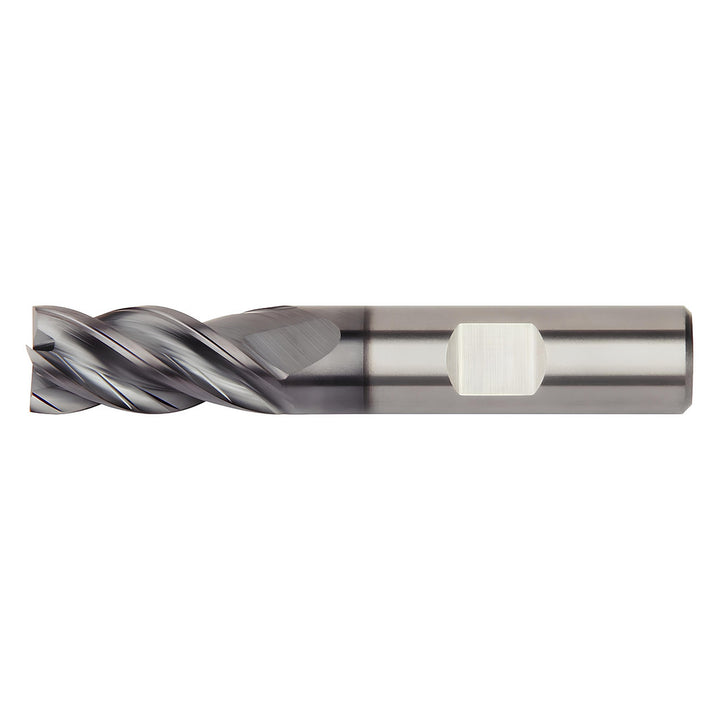

0.2362" 4-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill, AlTiN - Kennametal 6675751

MFR# 6675751Cat# H1TE4CH0600R013HBMSeries H1TE

$67.18List $86.16 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Flutes4

MaterialSolid Carbide

CoatingAlTiN

Description

The Kennametal 6675751 is a 0.2362 4-flute Solid Carbide (KCPM15) corner radius & corner chamfer end mill with a AlTiN finish for longer tool life. Suited for steel, stainless steel, cast iron, superalloys & titanium, hard material. Series H1TE.

Specifications

Additional informationShouldering; Slotting; Rampdown; Helical Interpolation; Drill Mill; Plunging & Recessing

CentercuttingYes

Chamfer angle45

Chamfer length (mm)0.40

Chamfer width (mm)0.40

ChipbreakerNo

Coating finishAlTiN

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeVariable

Helix styleVariable

Length of cut (mm)13.00

Length typeRegular

Manufacturers catalog numberH1TE4CH0600R013HBM

Material gradeKCPM15

Material removal typeRoughing & Finishing

Mill diameter0.2362

Number of flutes4

Overall length (mm)57.00

PitchNormal

Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material

Reach length (mm)13.00

Shank diameter (mm)6.00

Shank typeWeldon Flat

Single or double endSingle

Variable helixYes

Variable indexYes
