Guhring

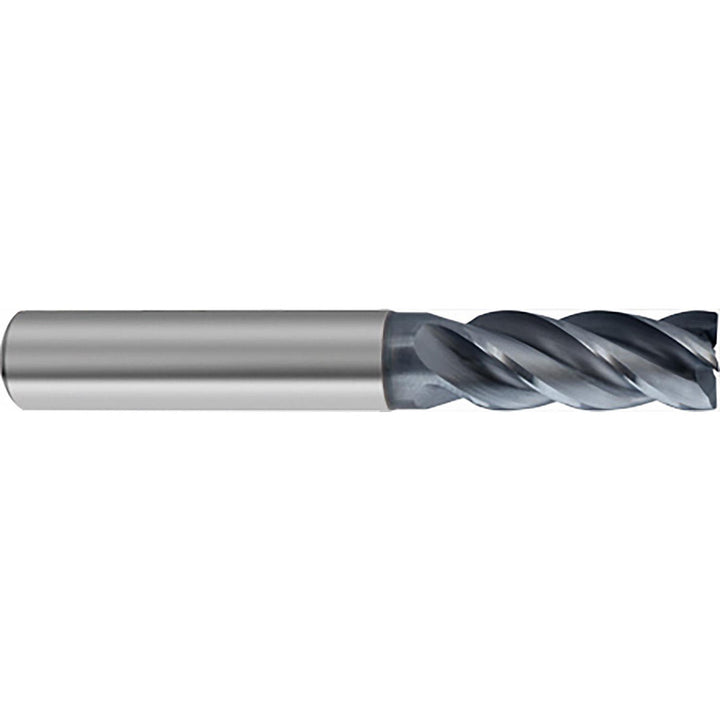

0.2362" 4-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill, AlCrN - Guhring 9064780060000

MFR# 9064780060000Series 6478

$49.58List $63.59 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Flutes4

MaterialSolid Carbide

CoatingAlCrN

Description

The Guhring 9064780060000 is a 0.2362 4-flute Solid Carbide (Proprietary) corner radius & corner chamfer end mill with a AlCrN finish for longer tool life. Series 6478.

Specifications

CentercuttingYes

Coating finishAlCrN

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachYes

Flute directionRight Hand

Flute typeHelical

Helix angle38; 40

Length of cut (mm)16.00

Length typeStandard

Material applicationHigh-Alloy Steel; Soft Metal; Tough Alloy

Material gradeProprietary

Mill diameter0.2362

Neck diameter (mm)5.70

Number of flutes4

Overall length (mm)57.00

Reach length (mm)20.00

Shank diameter0.2362

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixYes

Variable indexNo
