Titan USA

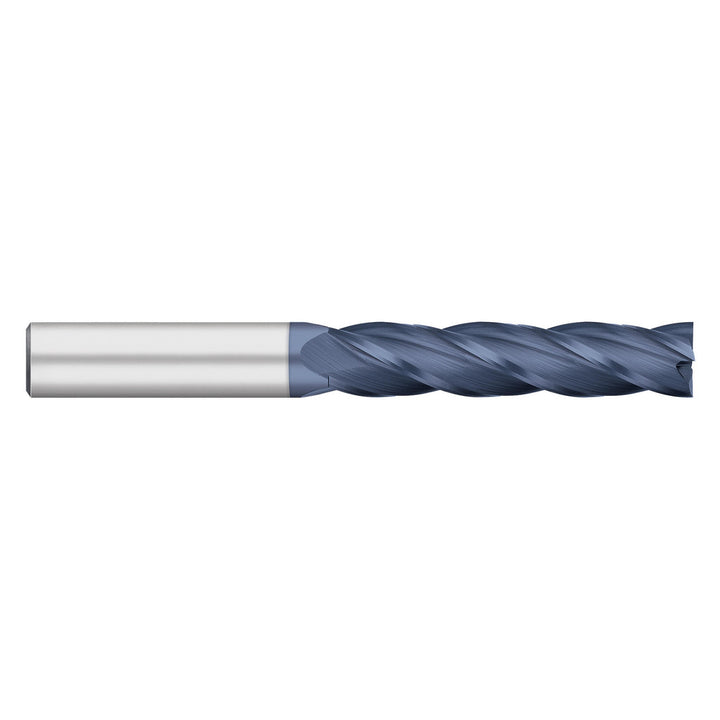

0.2362" 4-Flute Solid Carbide Square End Mill, AlTiN - Titan USA TC82568

MFR# TC82568Series General Purpose End Mills - Carbide - 4 Flute - Square - 30 deg Helix - Metric

$33.62List $43.12 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Flutes4

MaterialSolid Carbide

CoatingAlTiN

Description

The Titan USA TC82568 is a 0.2362 4-flute Solid Carbide square end mill with a AlTiN finish for longer tool life. Suited for steel, stainless steel, cast iron, aluminum & non-ferrous, high-temp alloy. Series General Purpose End Mills - Carbide - 4 Flute - Square - 30 deg Helix - Metric.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishAlTiN

Coating finish familyAlTiN

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle30

Length of cut (mm)32.00

Material gradeSolid Carbide

Mill diameter0.2362

Number of flutes4

Overall length (mm)63.00

Primary workpiece materialSteel; Stainless Steel; Cast Iron; Aluminum & Non-Ferrous; High-Temp Alloy

Shank diameter (mm)6.00

Single or double endSingle

System of measurementMetric

Variable helixNo

Variable indexNo
