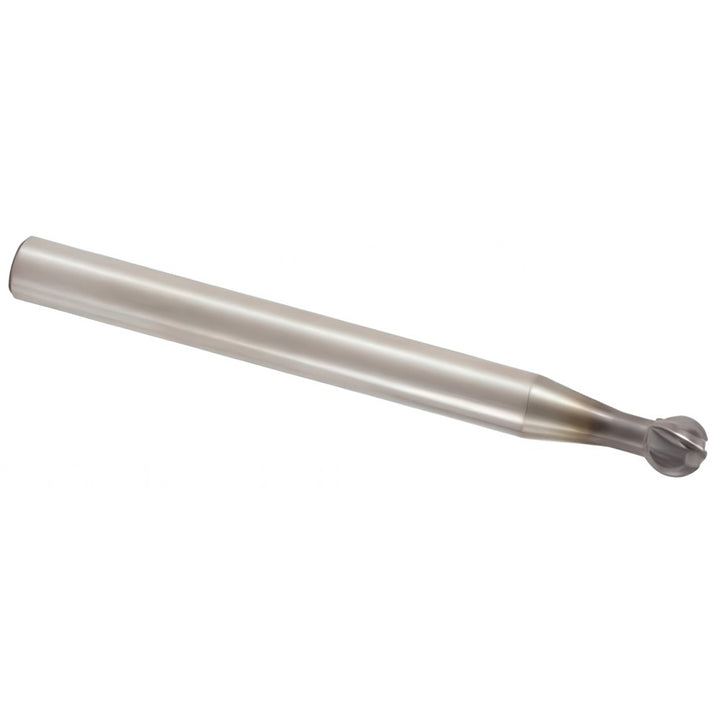

0.2362" 4-Flute Solid Carbide Ball End Mill, MEGA-64 - Seco 00040368

MFR# 00040368Cat# 160060-MEGA-64Series JH160

$176.05List $225.80 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Flutes4

MaterialSolid Carbide

CoatingMEGA-64

Description

The Seco 00040368 is a 0.2362 4-flute Solid Carbide (Micrograin) ball end mill with a MEGA-64 finish for longer tool life. Suited for steel, hard material. Series JH160.

Specifications

ChipbreakerNo

Coating finishMEGA-64

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachYes

Flute directionRight Hand

Flute typeSpiral

Helix angle15

Helix styleLow

Length of cut (mm)4.70

Length typeExtended

Manufacturers catalog number160060-MEGA-64

Material gradeMicrograin

Material removal typeRoughing & Finishing

Mill diameter0.2362

Mill diameter tolerance+0.02/-0.06 mm

Neck diameter (mm)3.60

Neck length (mm)5.00

Nose radius (mm)3.00

Number of flutes4

Overall length (mm)80.00

Primary workpiece materialSteel; Hard Material

Reach length (mm)9.70

Shank diameter (mm)6.00

Shank diameter toleranceh5

Shank typeStraight-Cylindrical

Single or double endSingle

System of measurementMetric

Tir maximum0.0004

Variable helixNo

Variable indexNo
