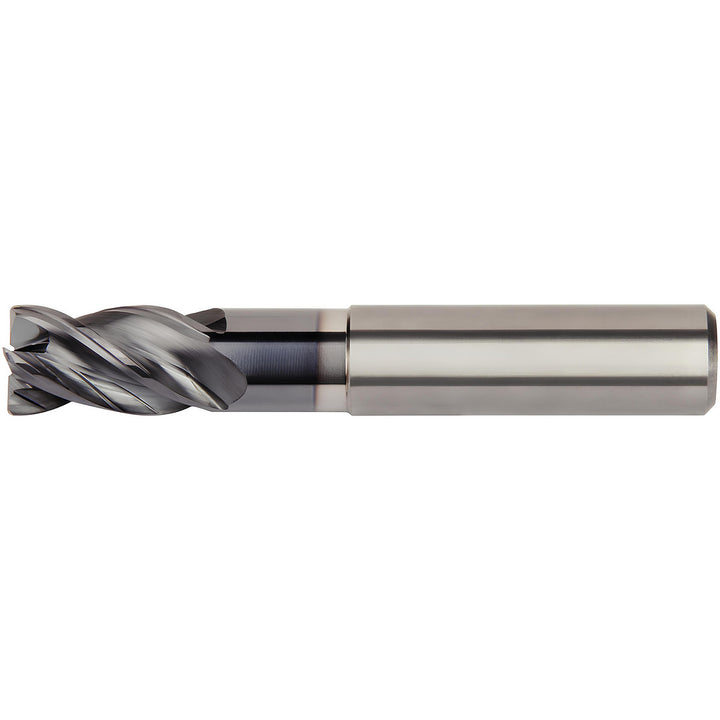

0.4724" 4-Flute Solid Carbide Corner Radius End Mill, AlTiN - Kennametal 6676257

Kennametal

0.4724" 4-Flute Solid Carbide Corner Radius End Mill, AlTiN - Kennametal 6676257

MFR# 6676257Series H1TE

$235.51List $296.79 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes4
MaterialSolid Carbide
CoatingAlTiN

Description

The Kennametal 6676257 is a 0.4724 4-flute Solid Carbide (Submicron) corner radius end mill with a AlTiN finish for longer tool life. Suited for steel, stainless steel, cast iron, superalloys & titanium, hard material. Series H1TE.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishAlTiN
Coolant throughNo
Corner radius (mm)0.50
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachYes
Flute directionRight Hand
Flute typeSpiral
For use withER Single Angle Standard Collets
Length of cut0.2500
Length typeShort
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
Material gradeSubmicron
Material removal typeRoughing & Finishing
Mill diameter0.4724
Neck diameter (mm)11.28
Number of flutes4
Overall length (mm)83.00
PitchNormal
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
Reach length (mm)36.35
Shank diameter (mm)12.00
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixNo
Variable indexNo
