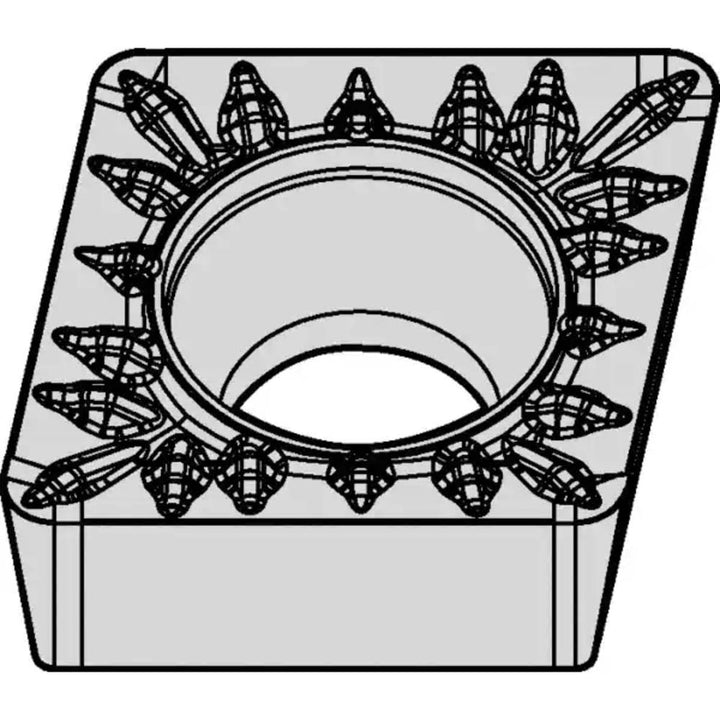

CPMT060204MP Carbide Insert, Grade KCS10B, AlTiN - Kennametal 6686921
MFR# 6686921ISO/ANSI# CPMT060204Series Screw-On
$34.03List $40.81
Save 16%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeC - Diamond (Rhombic) 80-Deg
GradeKCS10B
MaterialCarbide
CoatingAlTiN
Description
The Kennametal 6686921 is a CPMT060204MP carbide indexable insert, grade KCS10B, AlTiN coated. Suited for stainless steel, superalloys & titanium.
Specifications
Ansi insert codeCPMT2151
Ansi size code2151
Chip breakerMP
Chip breaker operationRoughing; Medium Machining
Clearance codeP
Coating finishAlTiN
Coating processPVD
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Aluminum & No
Hole diameter0.1102
Included angle80
Industry standard numberCPMT2151MP
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.2539
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code2151
Insert styleCPMT
Insert thickness in3/32
Iso codeCPMT060204MP
Iso insert codeCPMT060204
Iso size code060204
Length range0.0000 - 0.3000
Manufacturers catalog number6686921
Manufacturer gradeKCS10B
Material gradeS10
Maximum depth of cut0.0845
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges2
Primary workpiece materialStainless Steel; Superalloys & Titanium
RakePositive
Rake angle12
Relief angle11
Side clearancePositive
StandardsANSI; ISO
Tolerance codeM
Width in1/4
Wiper edgeNo
