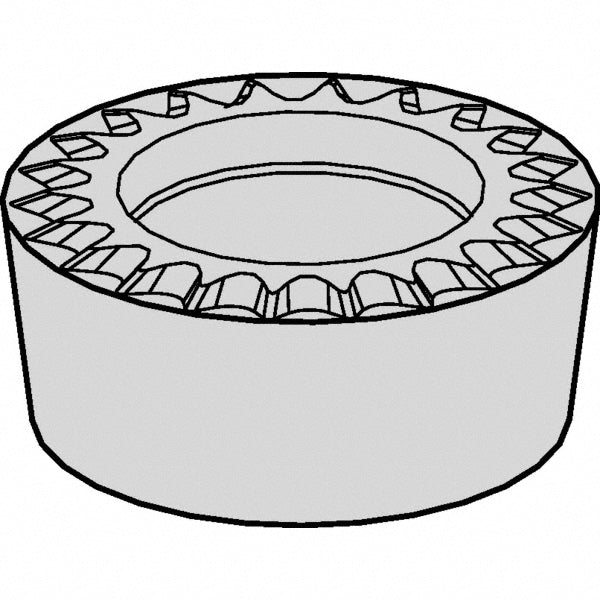

RCMT10T3M0MP Carbide Insert, Grade KCS10B, AlTiN - Kennametal 6686974
MFR# 6686974ISO/ANSI# RCMT10T3M0Series Screw-On
$28.67List $34.38
Save 16%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeR - Round
GradeKCS10B
MaterialCarbide
CoatingAlTiN
Description
The Kennametal 6686974 is a RCMT10T3M0MP carbide indexable insert, grade KCS10B, AlTiN coated. Suited for stainless steel, superalloys & titanium.
Specifications
Ansi insert codeRCMT10T3M0
Ansi size code10T3M0
Chip breakerMP
Chip breaker operationRoughing; Medium Machining
Clearance codeC
Coating finishAlTiN
Coating processPVD
Corner radius0.1969
Cutting edge styleHoned
Full radiusYes
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Aluminum & No
Hole diameter0.1732
Included angle360
Industry standard numberRCMT10T3M0MP
Inscribed circle0.3937
Insert handNeutral
Insert holding methodScrew
Insert length0.3937
Insert materialCarbide
Insert shapeR - Round
Insert size code10T3M0
Insert styleRCMT
Insert thickness in5/32
Iso codeRCMT10T3M0MP
Iso insert codeRCMT10T3M0
Iso size code10T3M0
Length range0.3000 - 0.4000
Manufacturers catalog number6686974
Manufacturer gradeKCS10B
Material gradeS10
Maximum depth of cut0.1311
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialStainless Steel; Superalloys & Titanium
RakePositive
Rake angle12
Relief angle7
Side clearancePositive
StandardsANSI; ISO
Tolerance codeM
Width0.3937
Wiper edgeNo
