Kennametal

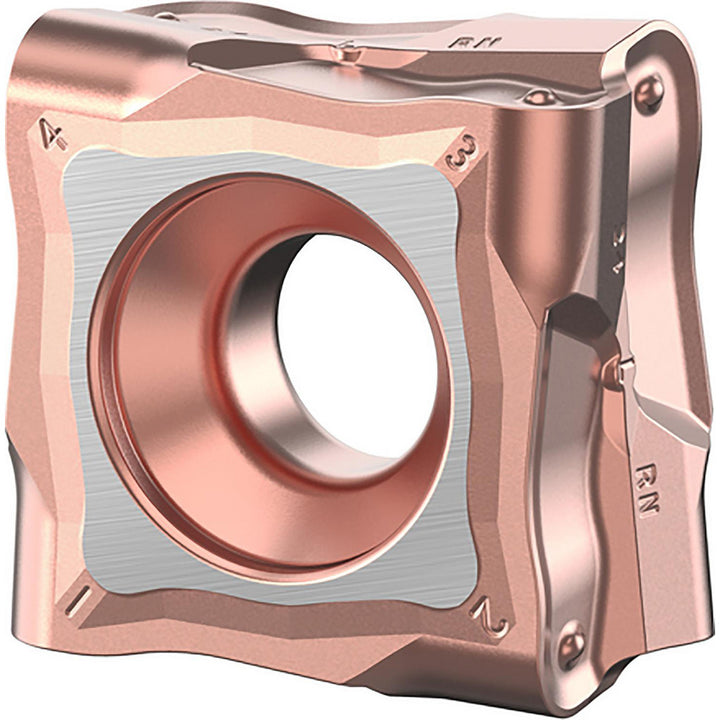

CNUX191016LRN Carbide Insert, Grade KCP25B, TiCN - Kennametal 6710686
MFR# 6710686ISO/ANSI# CNUX6674LRNSeries FIX8
$72.54List $87.00
Save 16%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/4
ShapeDiamond 80
GradeKCP25B
MaterialCarbide
CoatingTiCN
Description
The Kennametal 6710686 is a CNUX191016LRN carbide indexable insert, grade KCP25B, TiCN coated. Suited for steel, cast iron.
Specifications
Chip breakerRN
Clearance codeN
Coating finishTiCN
Coating processMTCVD
Corner radius in1/16
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.2839
Included angle80degree
Industry standard numberCNUX6674LRN
Inscribed circle in3/4
Insert handLeft Hand
Insert holding methodClamp; Pin
Insert length in3/4
Insert materialCarbide
Insert shapeDiamond 80
Insert size code6674
Insert styleCNUX
Insert thickness0.4165
Iso codeCNUX191016LRN
Length range0.7000 - 10.0000
Manufacturers catalog number6710686
Manufacturer gradeKCP25B
Material gradeC2; C3; C6; C7
Maximum depth of cut0.2498
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Cast Iron
RakeNegative
Rake angle0
Relief angle0
StandardsANSI; ISO
Tolerance codeU
Width0.7461in
Wiper edgeNo
